Flex Plate

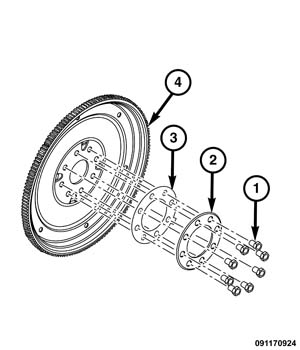

Non-High Output Engine

NOTE:
A new clamp ring (2) must be used anytime the flex plate has been removed.

Use a crisscross pattern to tighten bolts to 137 Nm (100 ft. lbs.).

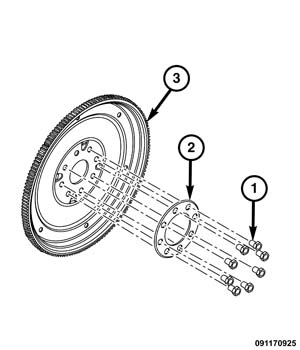

High Output Engine

NOTE:
Always use new bolts when installing the flex plate and do not lubricate new bolts as they are already coated with an anti-scuff treatment.

Use a crisscross pattern to tighten bolts to 137 Nm (100 ft. lbs.).
