Cruise Control Switch: Service and Repair

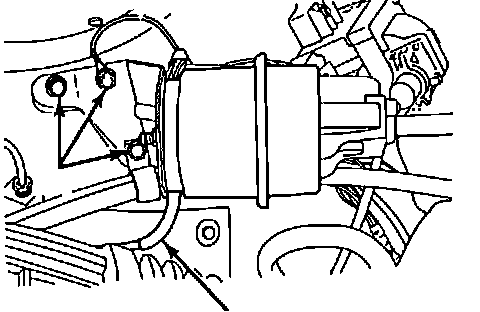

Fig. 4 Horn Wires:
1.
Pull up to remove horn cover.
2.
Disconnect horn wires and the electrical connector shown.
3.
Pry up to remove switch panel from steering wheel.
4.
Reverse procedure to install.
