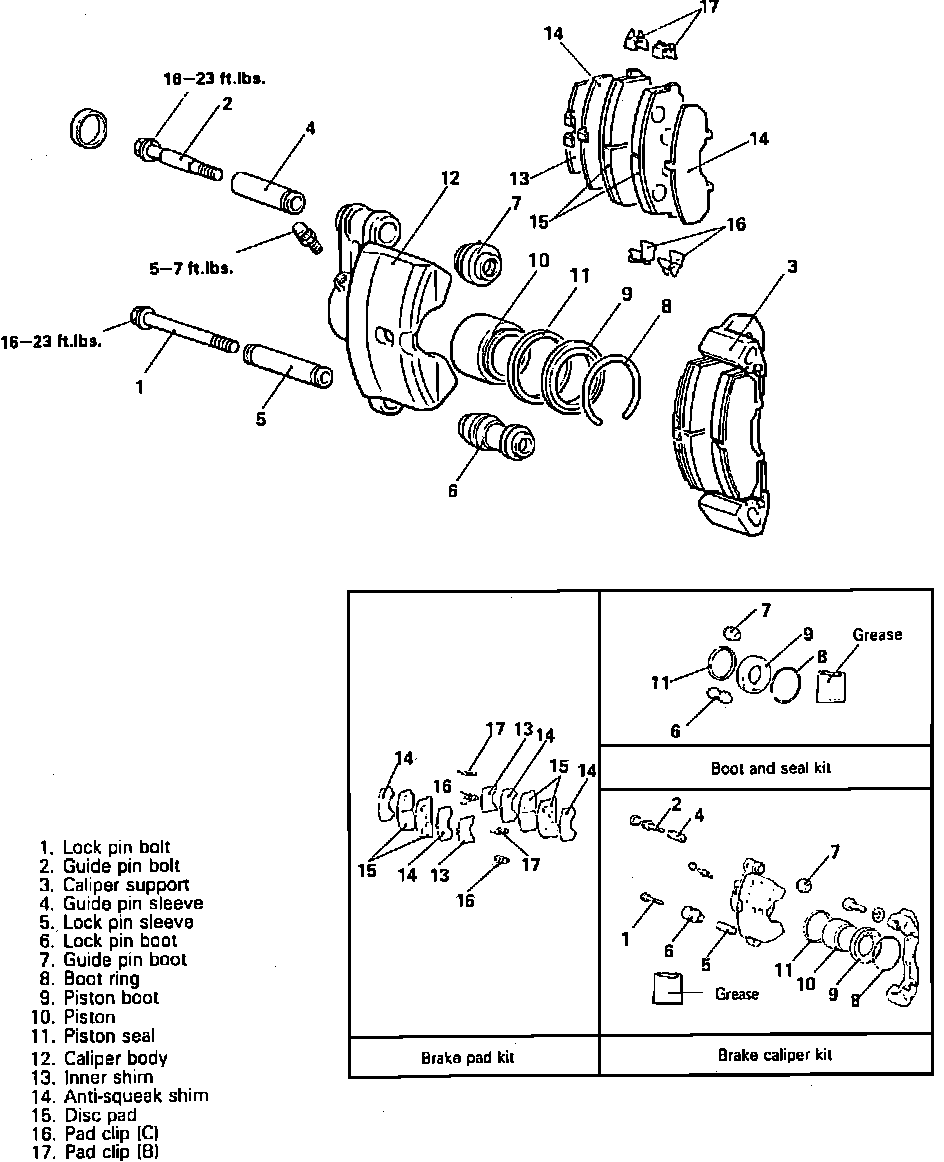

Fig. 1 AD54 Dual Pin Floating Caliper Disc Brake Assembly:

Fig. 2 AD54 Dual Pin Floating Caliper Disc Brake Assembly:

1. Remove approximately 1/3 of brake fluid from master cylinder.
2. Raise and support vehicle, then remove tire and wheel assembly.
3. Remove lock pin, then pivot caliper body upward and secure with wire.
4. Remove inner shims, anti-squeak shims, brake pad assemblies and pad clips from support mounting.
5. Press piston into caliper bore with suitable tool.
6. Install upper and lower pad clips, pad assemblies, inner shims and anti-squeak shims into support mounting.
7. Lower caliper body onto caliper bracket, then install lock pin.
8. Depress brake pedal several times to seat pads, then check reservoir and replenish brake fluid as necessary.
9. Install wheel and tire assembly and lower vehicle.
NOTE: Always road test vehicle after performing any brake repair procedures, to ensure safe operation.
