Switch/Transducer Connector

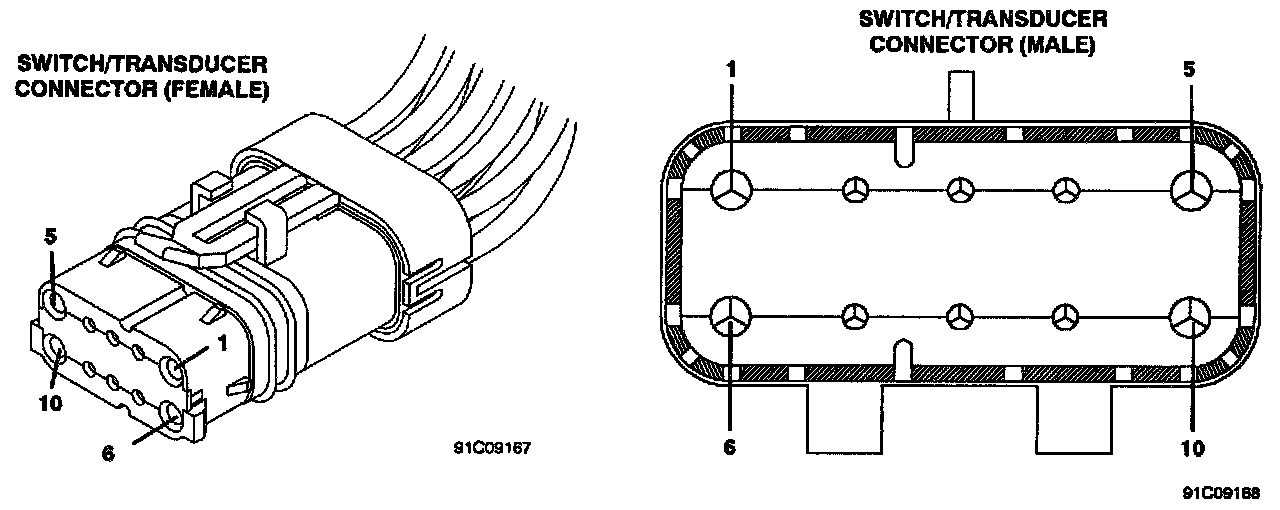

SWITCH/TRANSDUCER CONNECTOR

CAV CIRCUIT.......... FUNCTION
1..... Z1BE BK.......... Ground
2..... B210 RD/BK....... ABS Transducer Return (-)
3....................... Not Used
4..... G9A GY/BK........ Brake Fluid Level/Park Brake
5..... B21 GY........... Low Accumulator Switch
6..... T40B BR.......... Starter Relay To Solenoid
7..... B258 GY/LB....... Transducer Feed (+)
8..... B219 DB.......... Boost Pressure
9..... B218 WT/OR....... Primary Pressure/DPA
10.... B217 RD.......... Low Accumulator
