Ignition Coil: Service and Repair

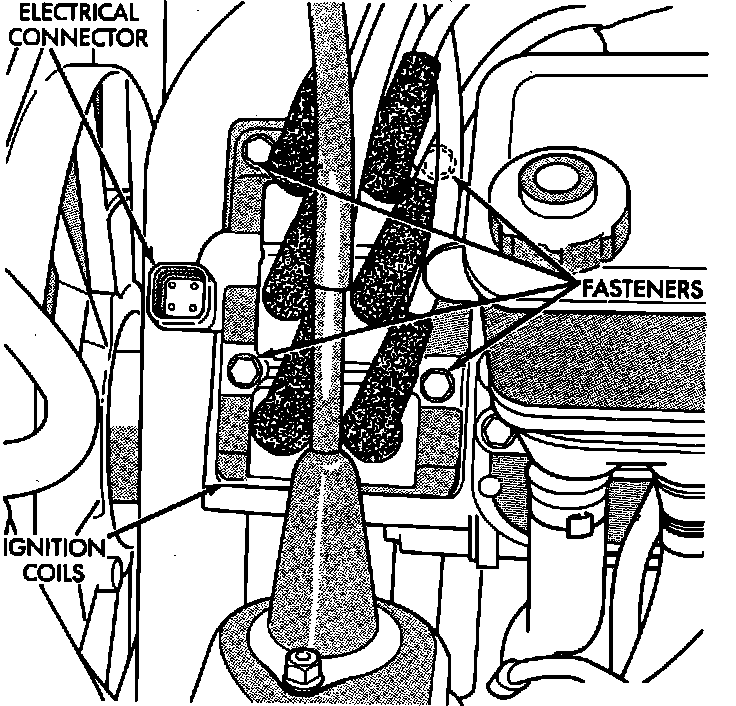

Ignition Coil-Pack:
Removal 1.
Remove spark plug cables from coil.
2.
Remove electrical connector.
3.
Remove
ignition coil fasteners.
INSTALLATION 1.
Install spark plug cables to coil.
2.
Install electrical connector.
3.
Install
ignition coil fasteners and torque to 105 lb.in. (12 Nm.)
