Home >> Eagle >> 1991 >> Premier V6-182 3.0L SOHC >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Lamp Out Module >> Locations >> Late & 1992 Models

Late & 1992 Models

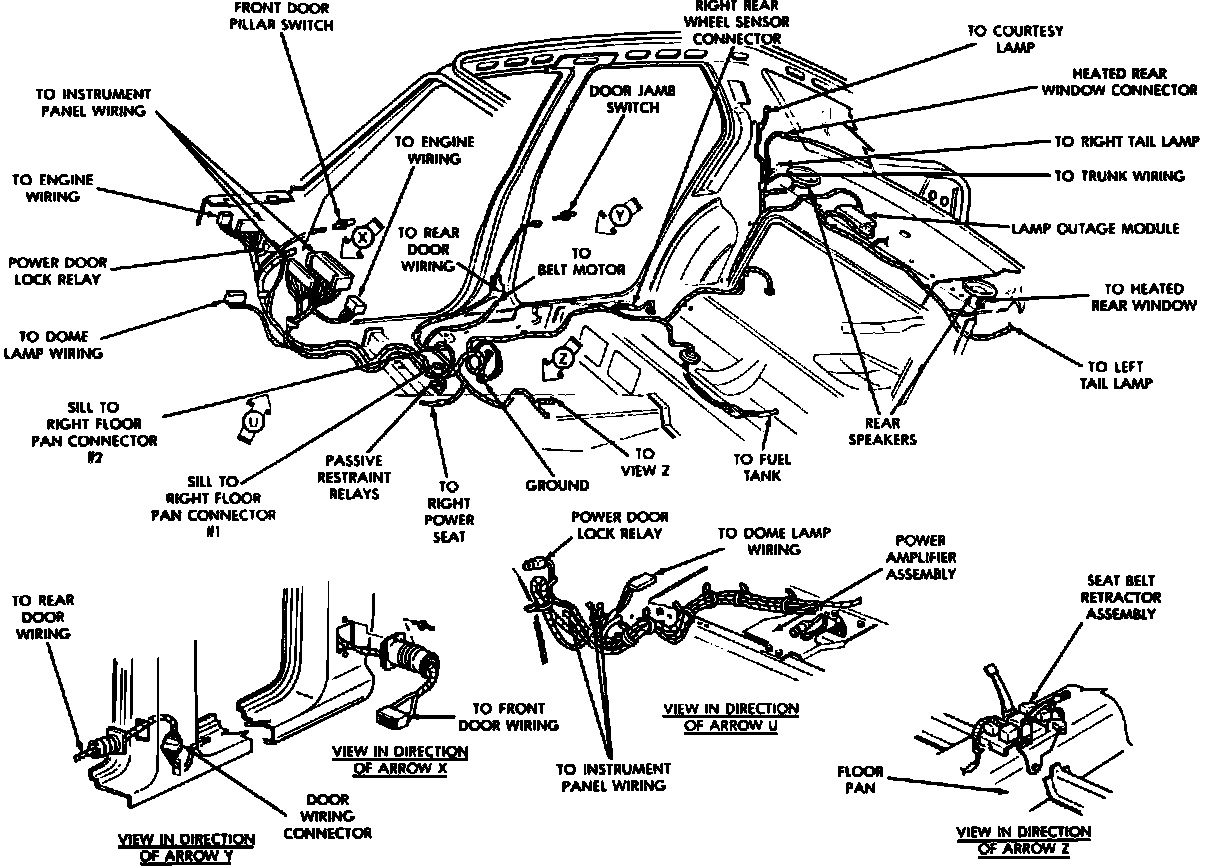

Body Side Components, Right Side.:




Under Rear Package Tray

Applicable to: Late 1991 & 1992 Models
