Fuel Tank Pressure Release Valve: Description and Operation

Overfill Limiter (Two Way Valve):

LOCATION
Mounted on the top R/H side of the fuel tank.

DESCRIPTION

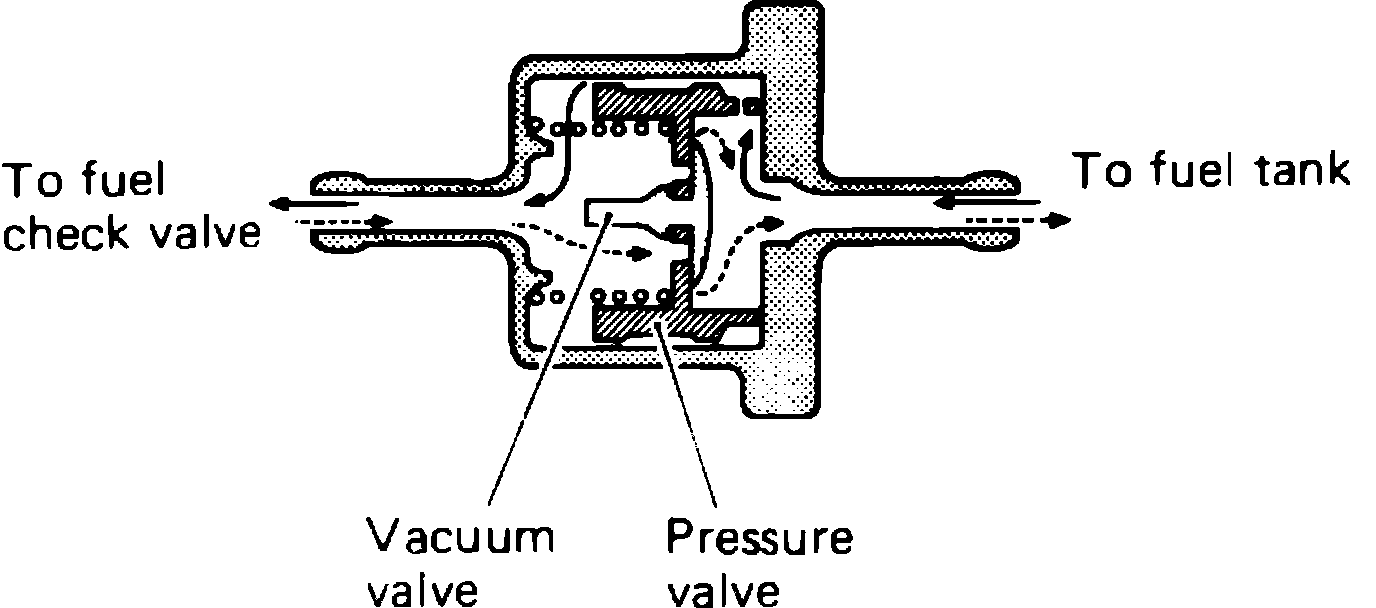

It consists of a pressure valve and a vacuum valve.

OPERATION
The pressure valve is designed to open when the fuel tank internal pressure exceeds atmospheric pressure and the vacuum valve opens when a vacuum has been produced in the tank.
