4 Speed

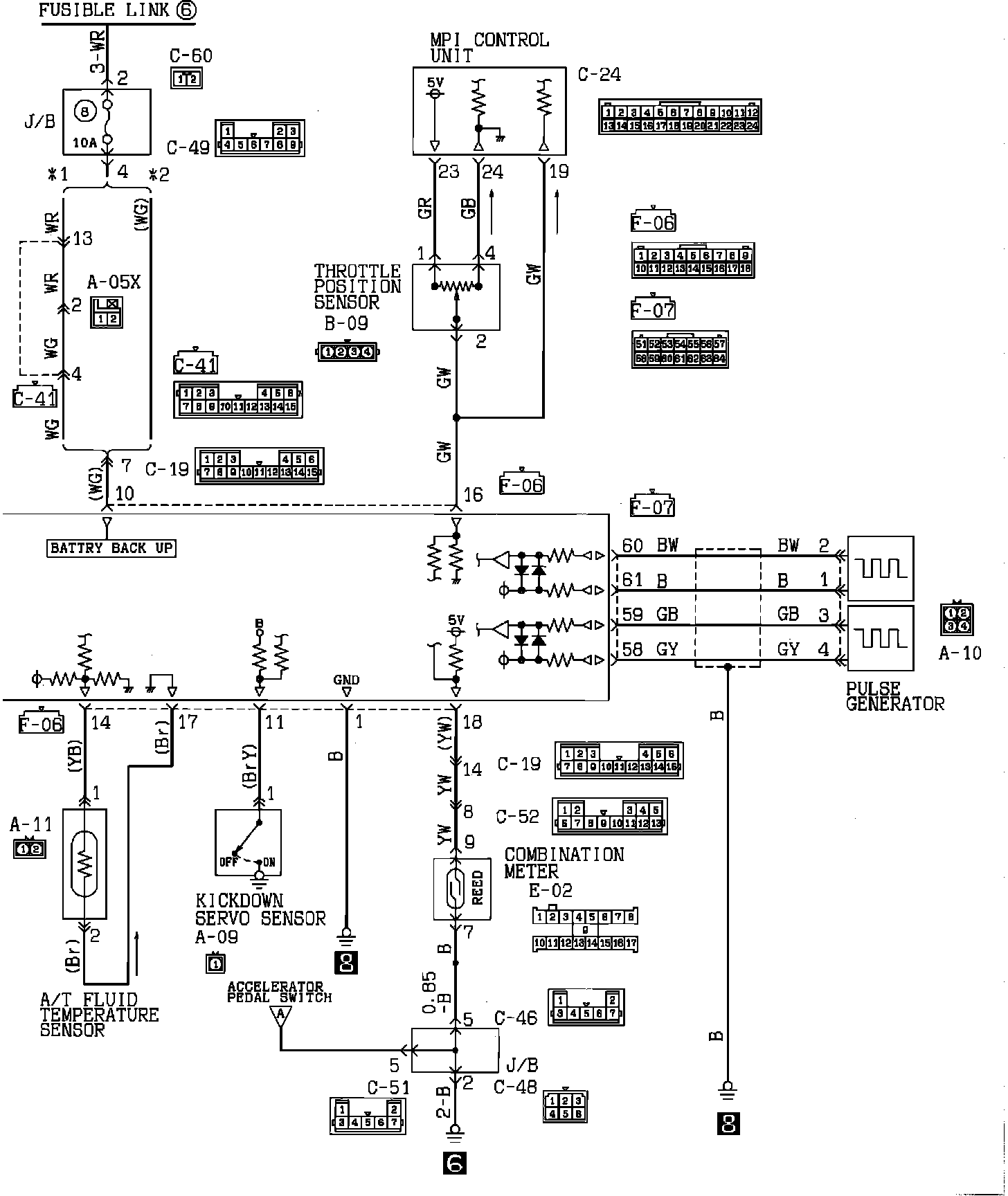

Automatic Transmission W/4 Speed Sedan:

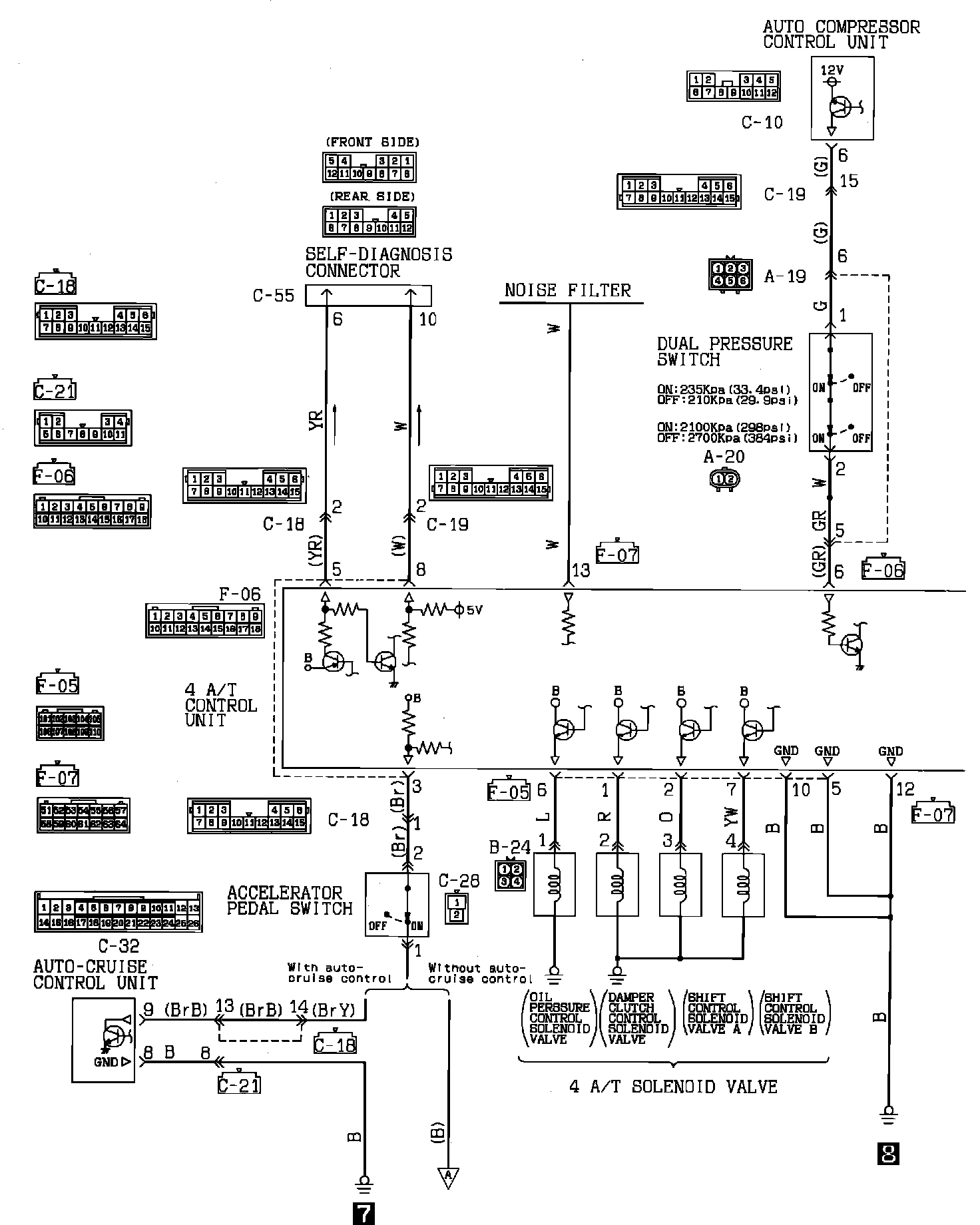

Automatic Transmission W/4 Speed Sedan:



Automatic Transaxle. 4 Speed:



Automatic Transaxle. 4 Speed:
