Console: Service and Repair

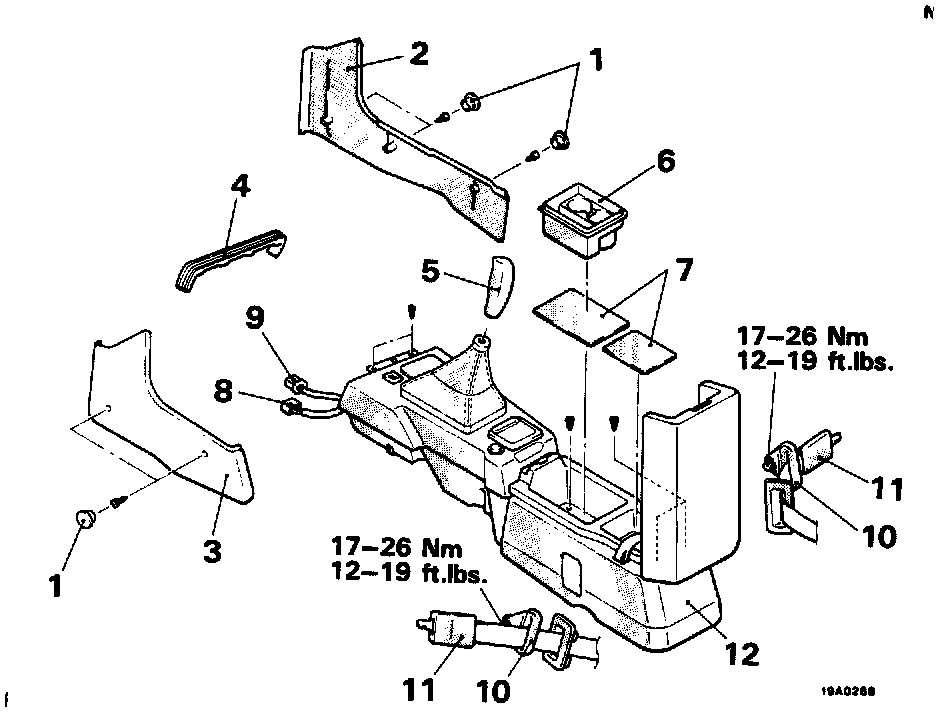

REMOVAL STEPS
1. Plug
2. Side cover (A)
3. Side cover (B)
4. Cover (B)
5. Manual transaxle shift lever knob
6. Cup holder
7. Carpet
8. Connection for floor console wiring harness
9. POWER (PWR)/ECONOMY (ECO) changeover switch connector
10. Guide ring
11. Shoulder belt
12. Floor console assembly

NOTE: Reverse the removal procedures to reinstall.

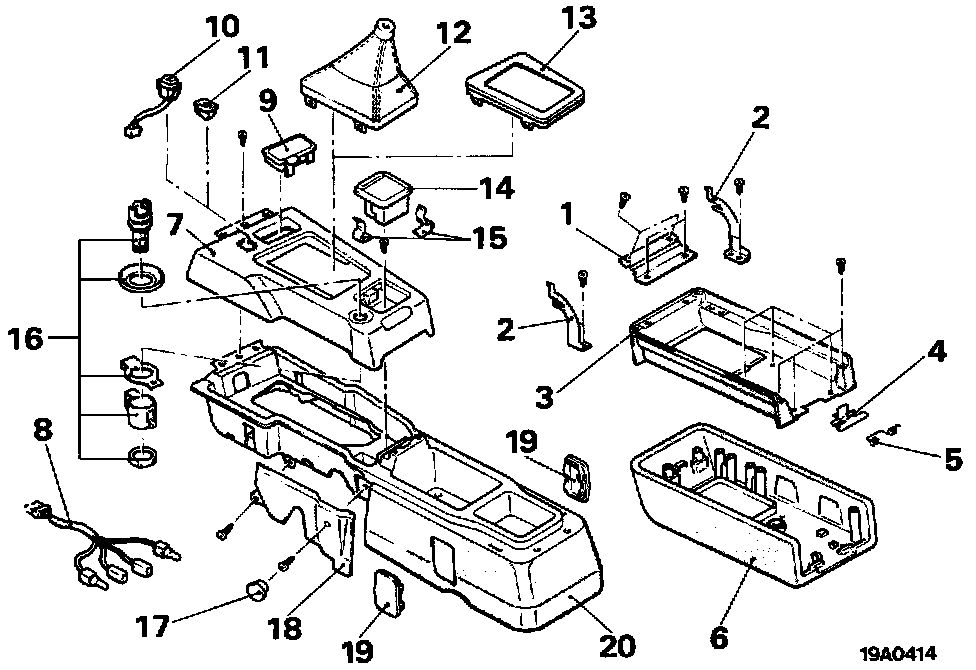

DISASSEMBLY STEPS
1. Hinge
2. Stoppers
3. Lid inner 17
4. Lock lever
5. Lock lever spring
6. Accessory box lid
7. Floor console garnish assembly
8. Floor console wiring harness
9. Coin box
10. POWER (PWR)/ECONOMY (ECO) changeover switch
11. Coin holder
12. Shift lever boot
13. Panel
14. Ashtray
15. Ashtray spring
16. Cigarette lighter
17. Plug
18. Side cover (C)
19. Console cover
20. Floor console

NOTE: Reverse the disassembly procedures to reassemble.
