Home >> Eagle >> 1991 >> Talon FWD L4-1753cc 1.8L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

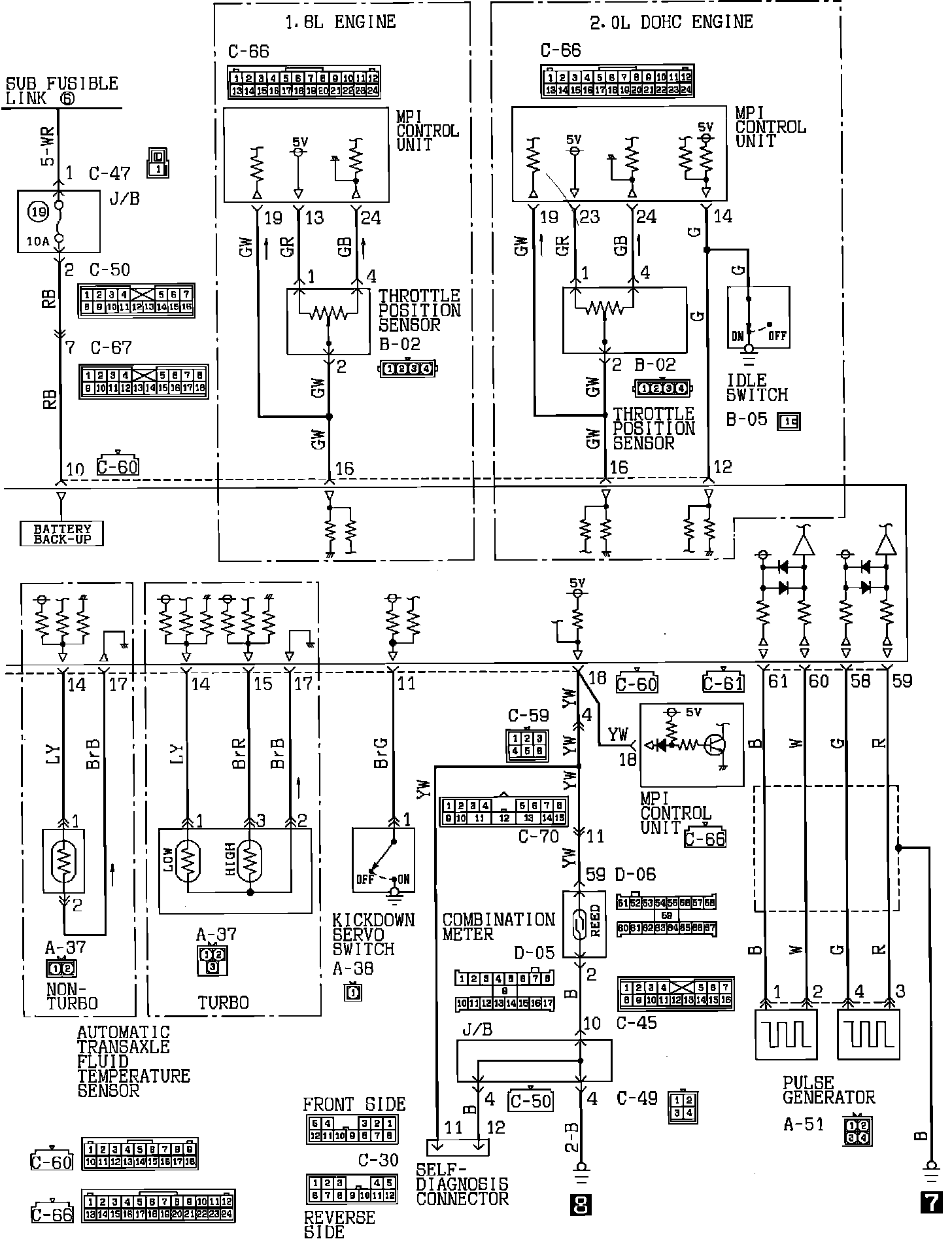

Automatic Transaxle (4-Speed):

Automatic Transaxle (4-Speed):

Automatic Transaxle (4-Speed):

Automatic Transaxle (4-Speed):
