Home >> Eagle >> 1992 >> Summit L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Cruise Control >> Cruise Control Servo >> Locations

Cruise Control Servo: Locations

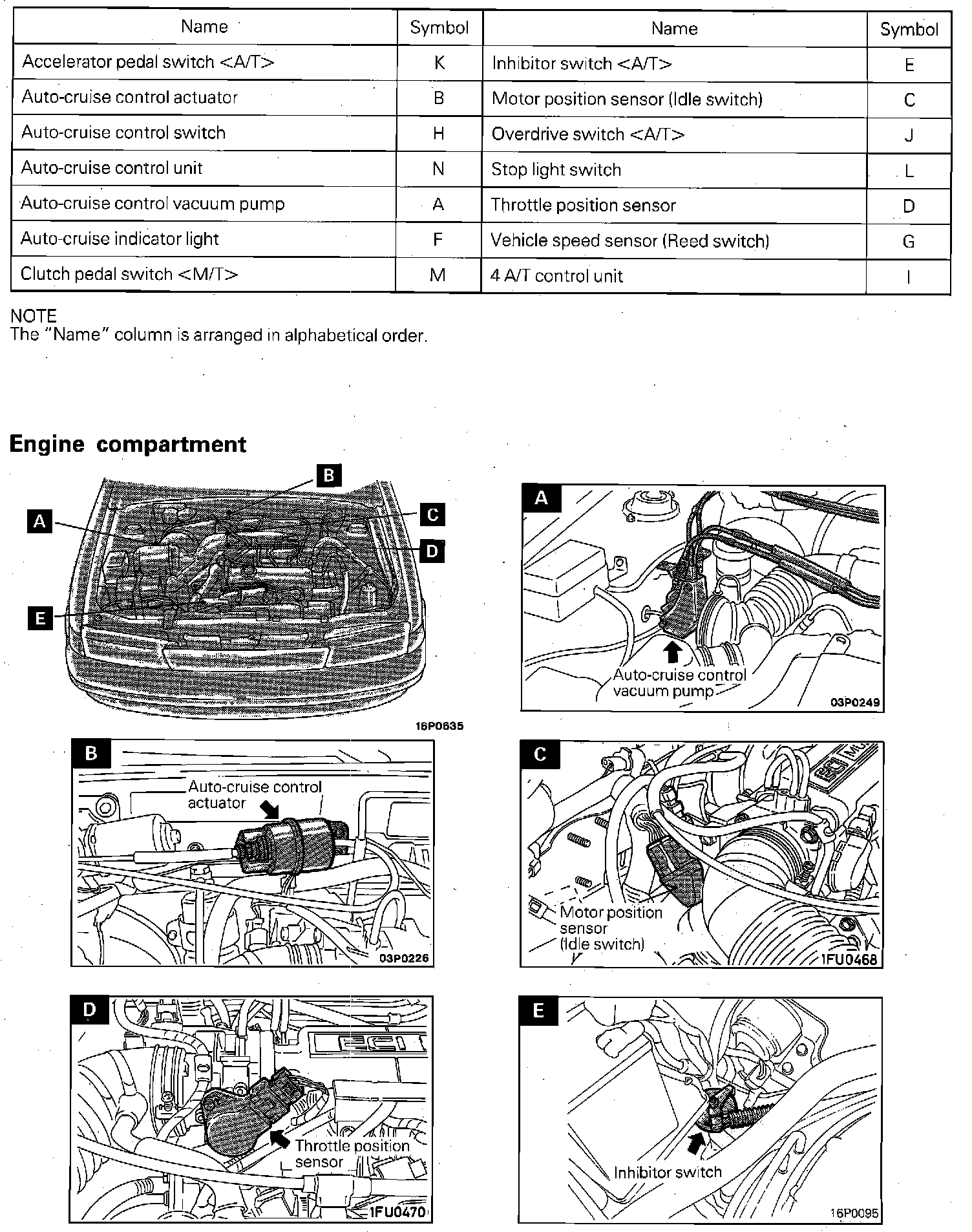

Component/Relay/Switch Locations (Cruise Control, Engine Compartment):
