Water Test

WATER TEST
1. Close roof lid tightly.





2. Hold hose upward and adjust water fountain to about 50 cm (20 in.) high.

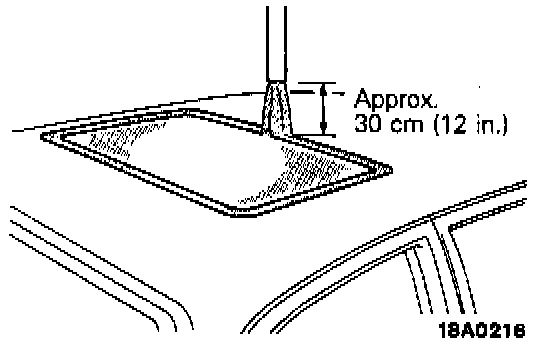

3. Pour water over the roof from about 30 cm (12 in.) above roof for more than 5 minutes.
4. While pouring water, check for leak around roof lid.
5. In the event of leakage, check drain pipe, weatherstrip contact and others.
