Throttle Position Sensor: Service and Repair

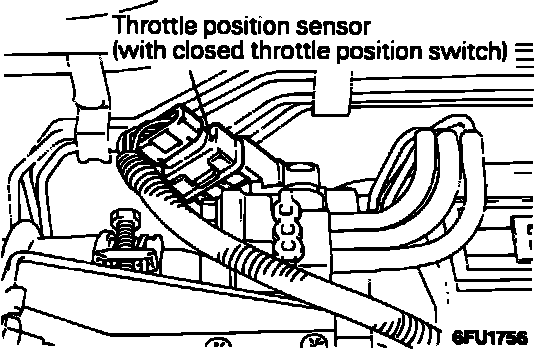

Throttle Position Sensor Location:
REMOVAL
1. Disconnect the harness connector.
2. Remove the two mounting screws.
3. Remove the sensor.
INSTALLATION
1. Install the sensor.
2. Install the two mounting screws.
3. Reconnect the harness connector.
4. Refer to ADJUSTMENT PROCEDURES for adjustment to obtain the proper alignment setting.
