Outer Switch Test

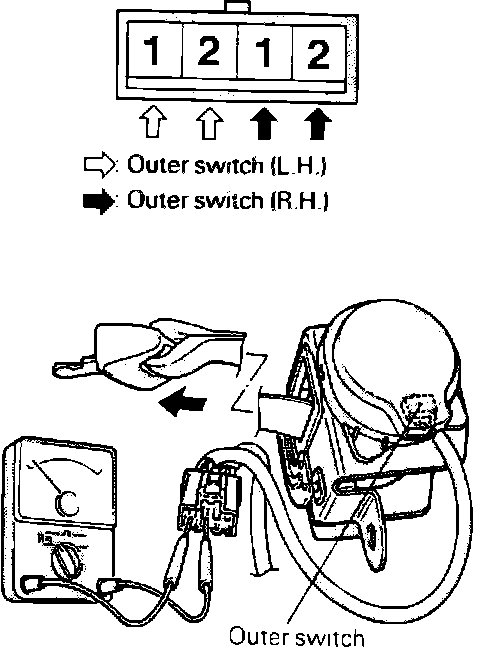

Fig. 8 Checking Outer Switch:

1. Disconnect the outer switch connector.
2. Pull the shoulder belt out farther than its midpoint.
3. Using a suitable ohmmeter, check continuity as shown.
4. Continuity should be present with the belt pulled out past its midpoint.
5. No continuity should be present when belt is pulled out less then its midpoint.
