Seats: Service and Repair

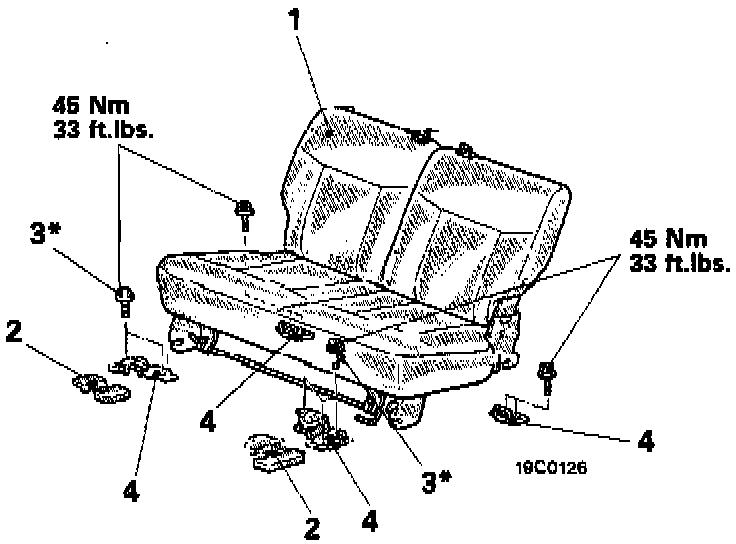

REMOVAL STEPS
1. Hear seal assembly
2. Seat anchor cover
3. Bolt
4. Seat striker

NOTE: After provisionally tightening the bolts marked with a * in all locations. tighten them to the specified torque.

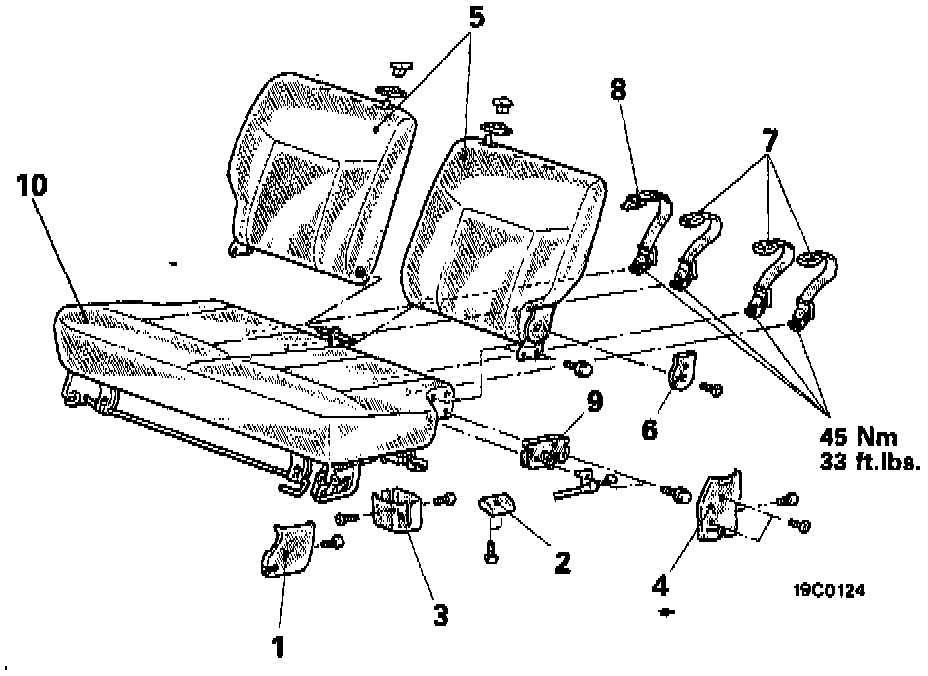

DISASSEMBLY STEPS
1. Latch cover
2. Tumble lever
3. Lever cover
4. Latch cover
5. Seat back assembly
6. Reclining cover
7. Inner seat belt
8. Outer seat belt
9. Latch assembly
10. Seat cushion assembly
