Transmission Temperature Sensor/Switch: Service and Repair

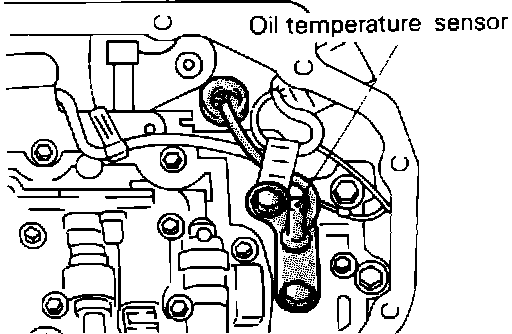

Oil Temperature Sensor:

1. Unplug the connector from the oil temperature sensor.
2. Remove the transmission pan.
3. Remove the oil temperature sensor mounting bolts and remove the sensor from the bracket.
4. Reverse procedure for installation, refill transmission before starting vehicle.
