Generator Replacement

Pre-Removal Operation
^ Under Cover Side Panel Removal

Post-Installation Operation
^ Drive Belt Tension Adjustment
^ Under Cover Side Panel Installation




Removal

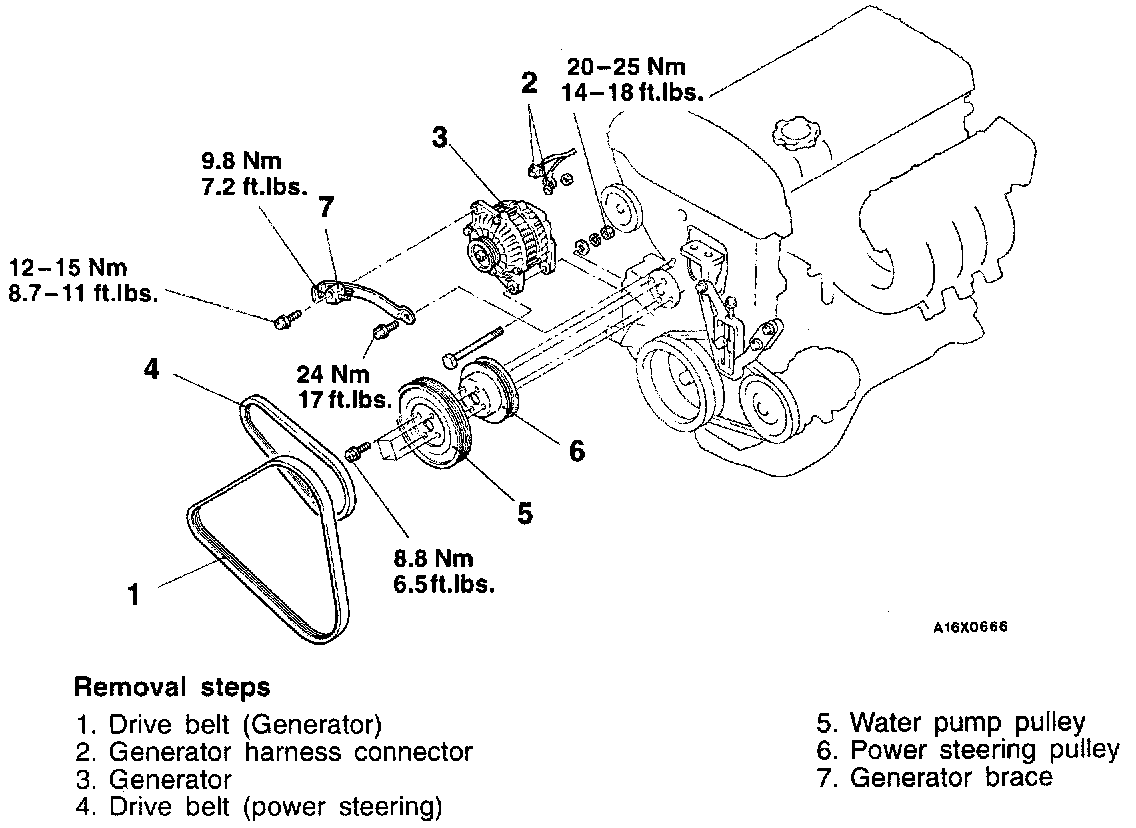

To remove follow the steps listed in the image.




Step 3: Generator Removal

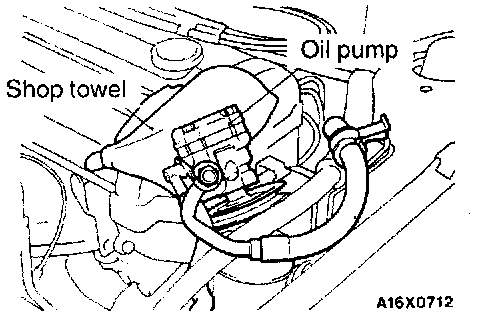

1. Remove the mounting bolt of the power steering oil pump, and hold the oil pump above the engine mount bracket. Use shop towel, etc. to prevent scarring or scratching of the rocker cover

NOTE: Do not disconnect the oil pump hose.




2. With the generator facing as shown in the figure, remove upward.
Installation
To install reverse the steps listed in the image.
