Rear Alignment

NOTES:
- Measure wheel alignment with alignment equipment on level ground.

- The rear suspension and wheels should be serviced to the normal condition prior to wheel alignment.





TOE-IN

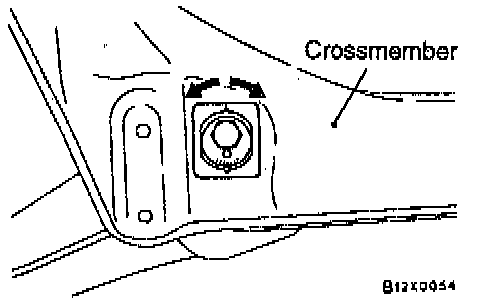

Turn the toe control arm mounting bolt to the left or right by equal amounts to adjust.
- LH: Turning clockwise toe-out direction
- RH: Turning clockwise toe-in direction
Furthermore, toe adjustment can be made at graduations of approximately 1.3 mm (0.05 inch).

CAMBER
1. Camber is preset at the factory and can not be adjusted.
2. If camber is not within the standard value, check and replace bent or damaged parts.
