Windshield Washer Spray Nozzle: Adjustments

STANDARD PROCEDURE - WASHER NOZZLE ADJUSTMENT

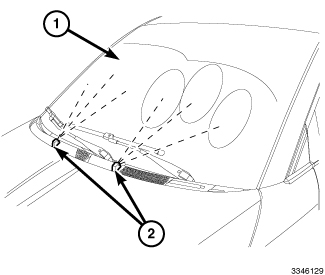

1. Operate the front windshield washers to verify that all three streams from each front washer nozzle are aimed to hit the windshield glass within the wiper pattern (1).
2. If either front nozzle fails the aim check, use a small screwdriver to rotate the screw on the left side of the nozzle hood (2) to adjust the streams up or down as required.
