Charging System: Diagrams

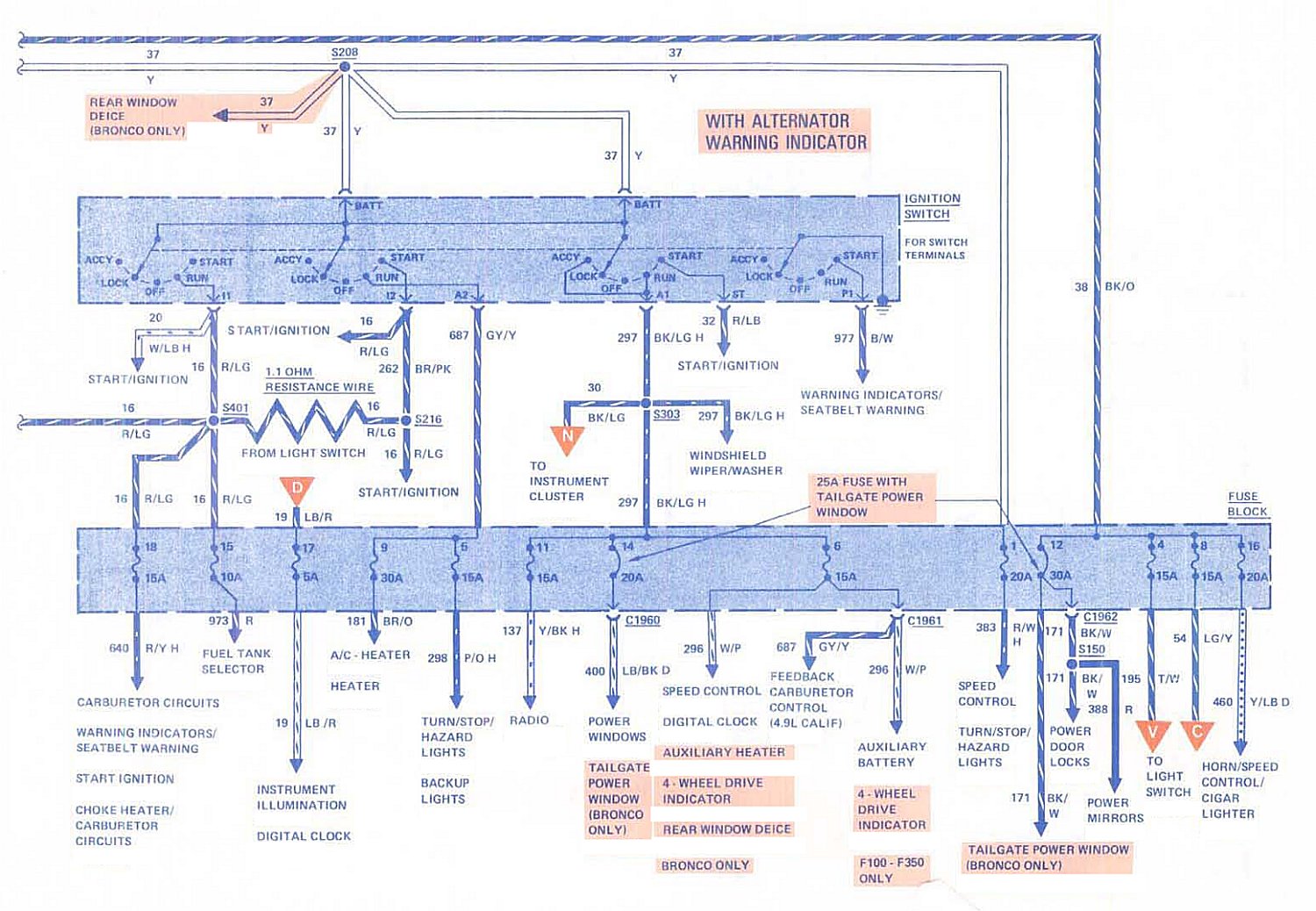

With Alternator Warning Indicator:

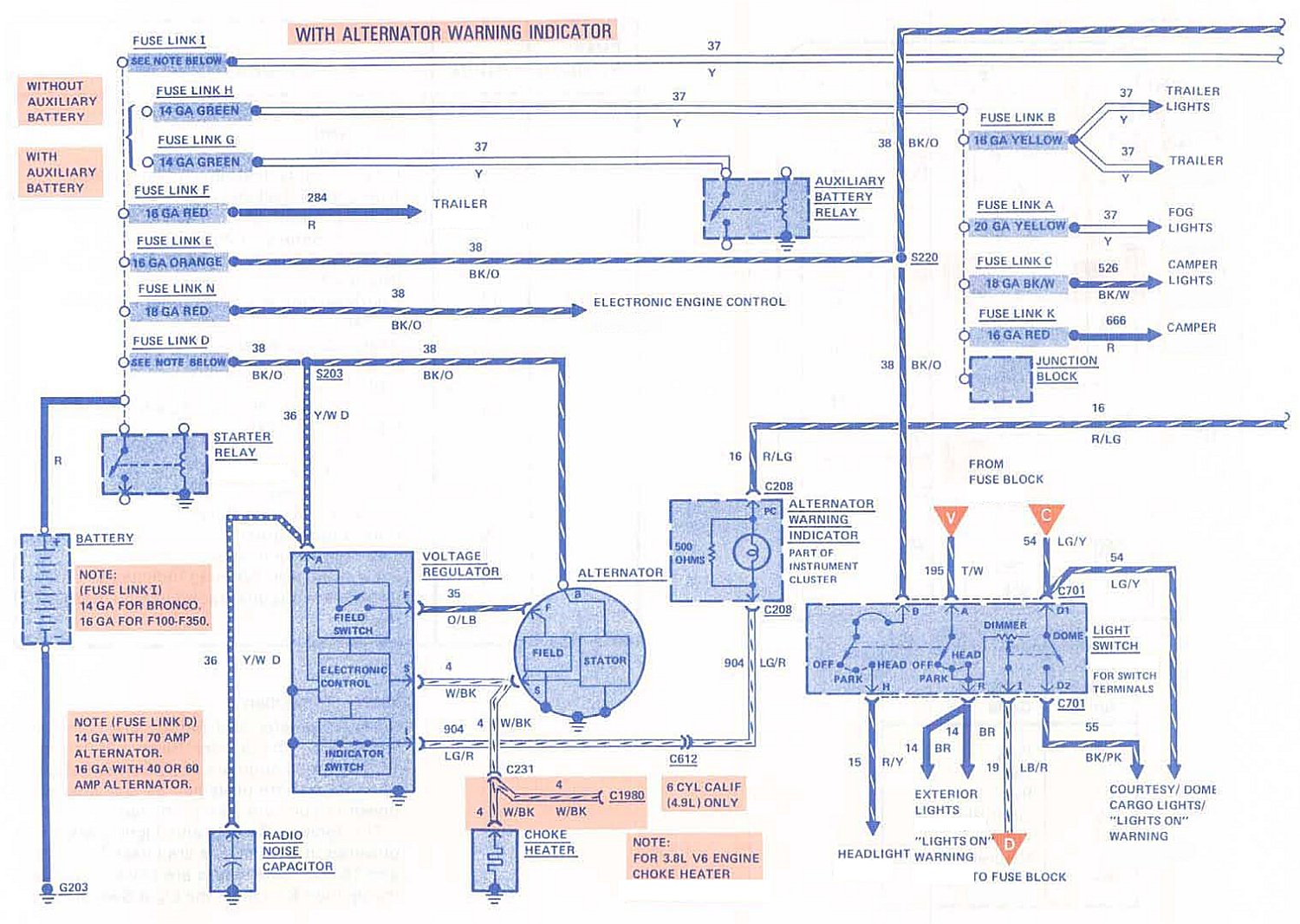

With Alternator Warning Indicator:

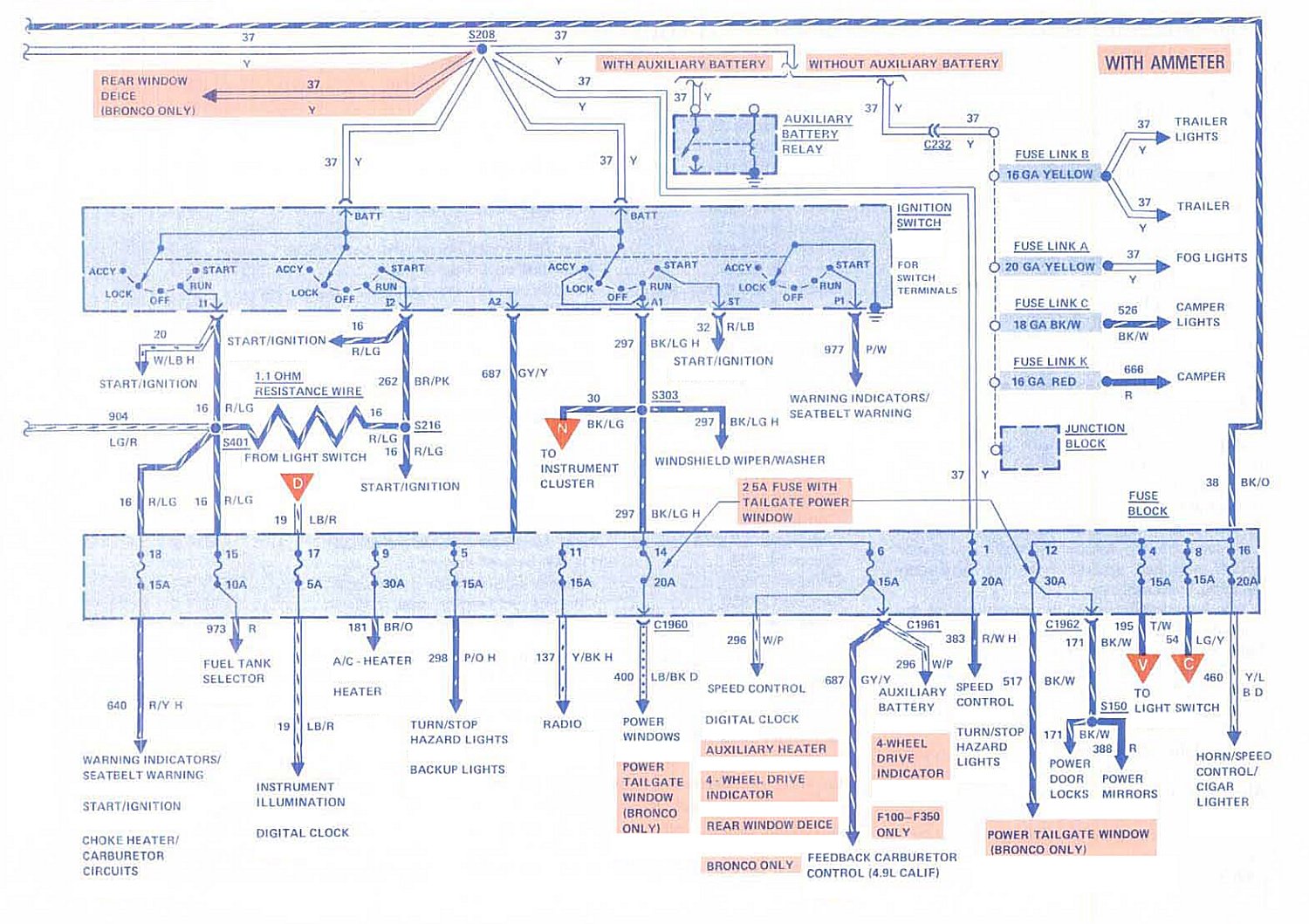

With Ammeter:

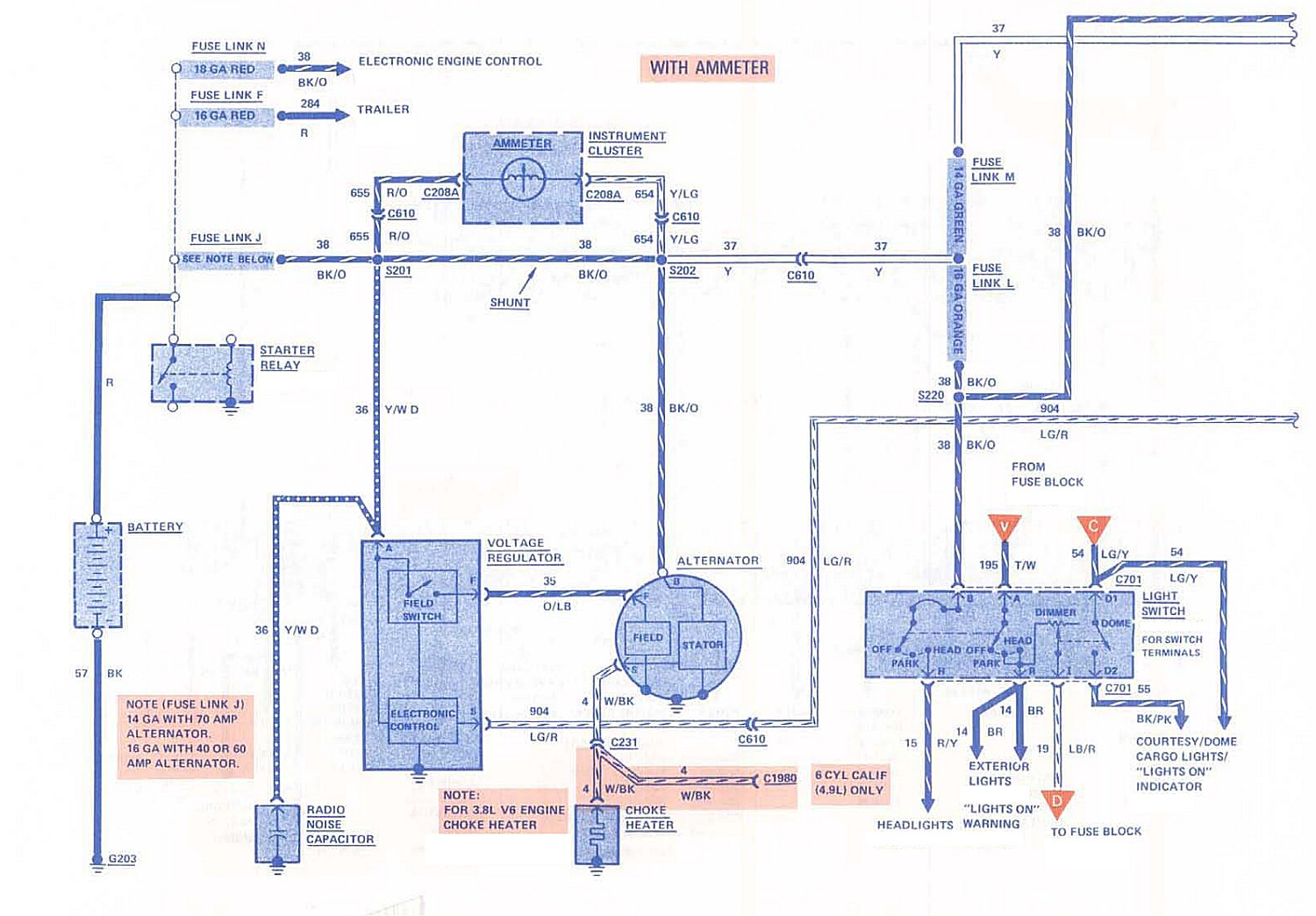

With Ammeter:
