Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1982
>>
Courier L4-1970cc 2.0L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Carburetor
Carburetor

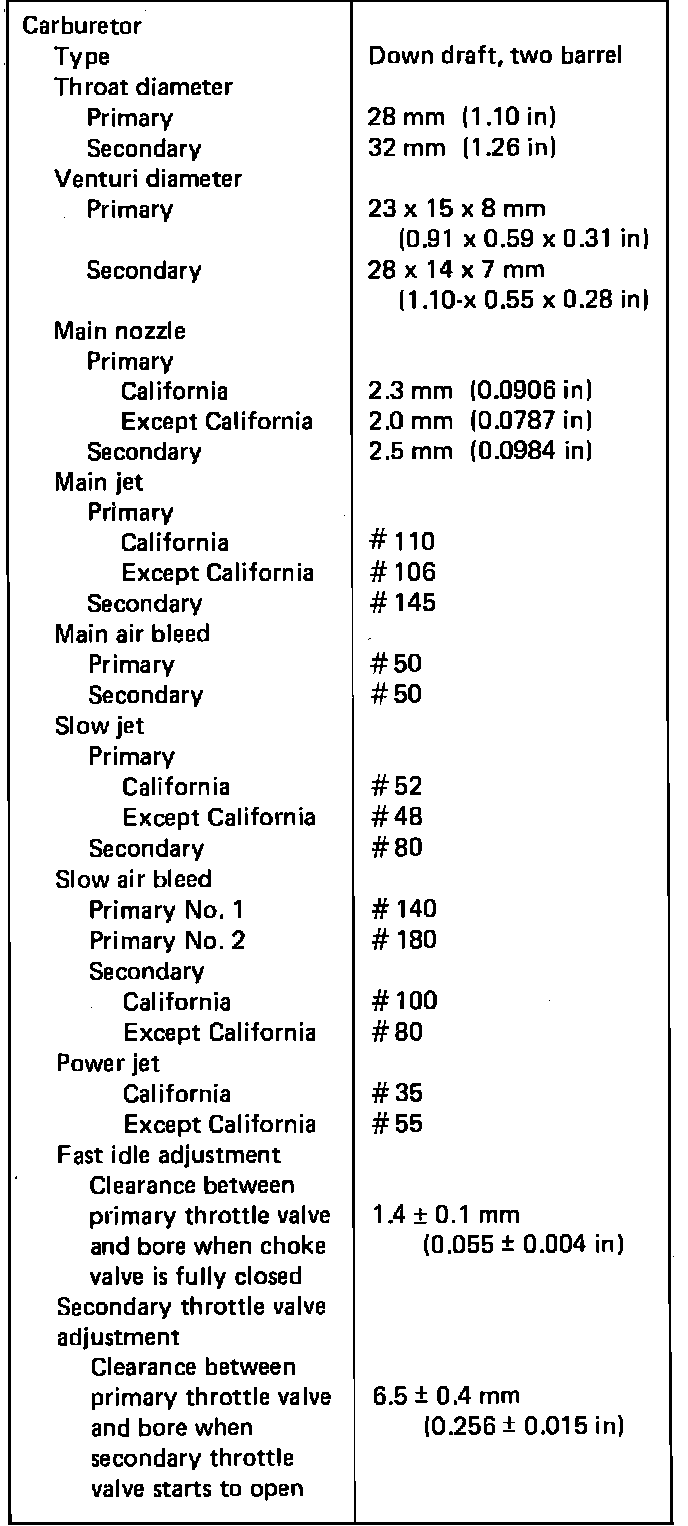

Fig. 10 Carburetor Specifications:
