Home >> Ford >> 1982 >> E 100 Van L6-300 4.9L VIN 9 1-bbl >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Manual >> Exc. Calif. >> Calib. Code 2-51E-R10

Calib. Code 2-51E-R10

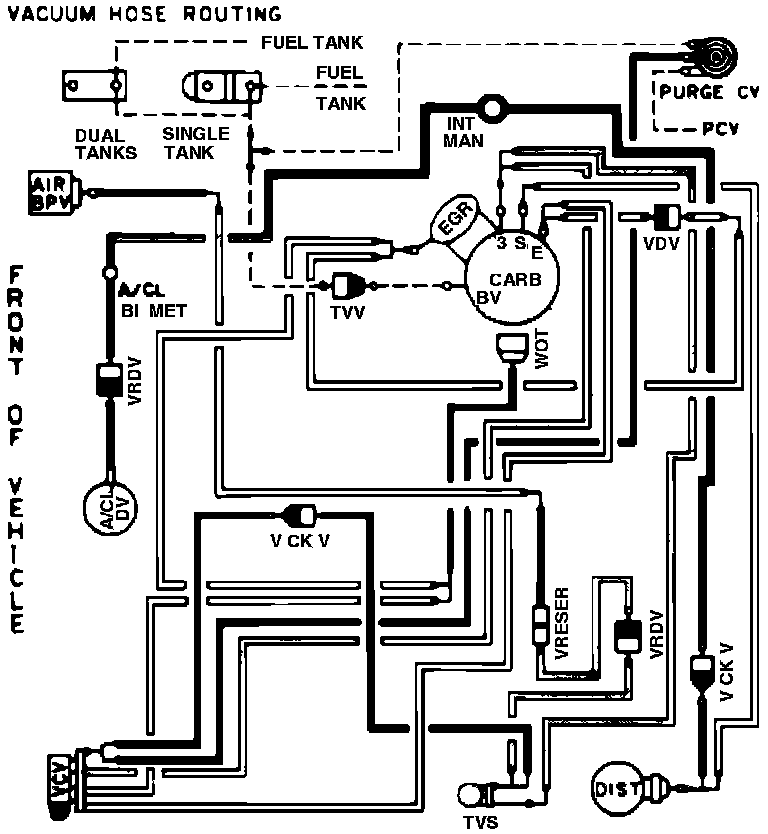

Vacuum Hose Routing:
