Home >> Ford >> 1982 >> E 250 Van L6-300 4.9L VIN 9 1-bbl >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Automatic >> Exc. Calif. >> Calib. Code 2-52K-R0

Calib. Code 2-52K-R0

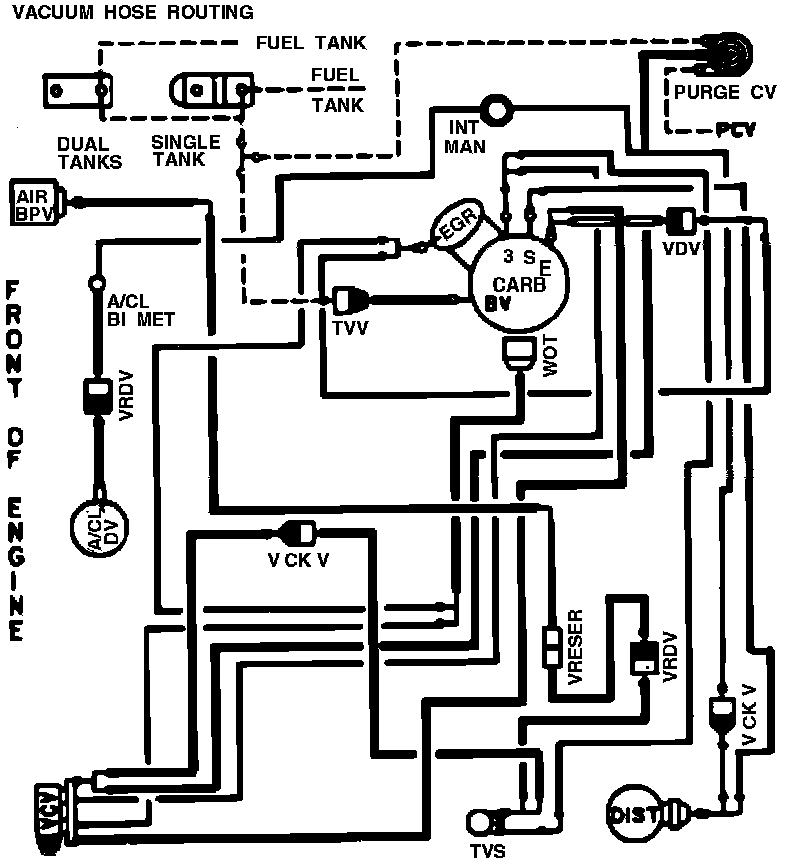

Vacuum Hose Routing:
