Connecting Rod: Service and Repair

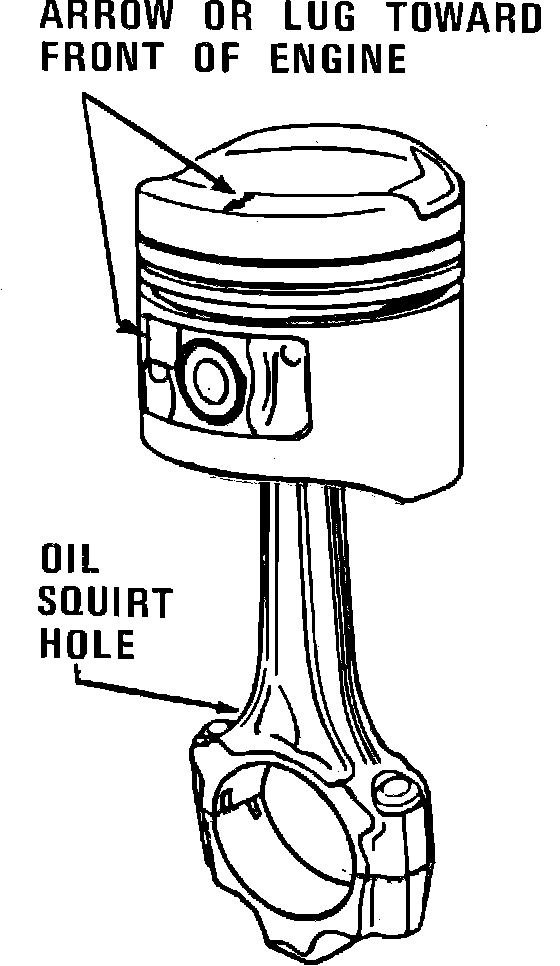

Fig. 9 Piston & rod assembly:
Assemble the
piston to the rod with arrow or lug facing front of engine and numbered side of rod facing
exhaust manifold side of engine,
Fig. 9. Check side clearance between
connecting rods at each connecting rod
crankshaft journal. Clearance should be .004---.011 in.
