Fig. 31 Calib. Codes 2-64Y-R11 & R12
Fig. 31 Calib. Codes 2-64Y-R11 & R12

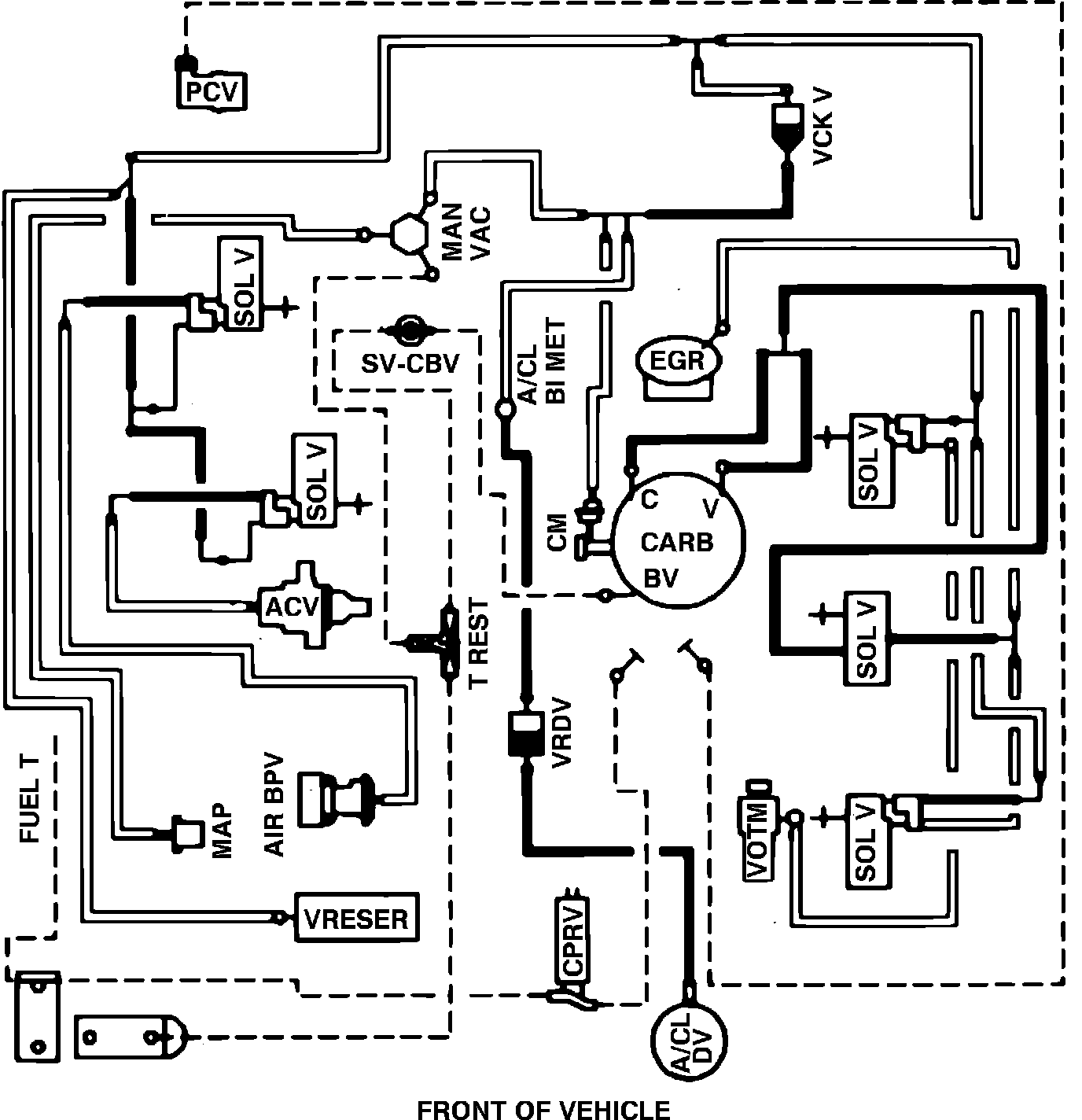

Fig. 31 Vacuum hose routing. 1983 V8-351 calib. codes 2-64Y-R11 & R12:
