Less Gauges

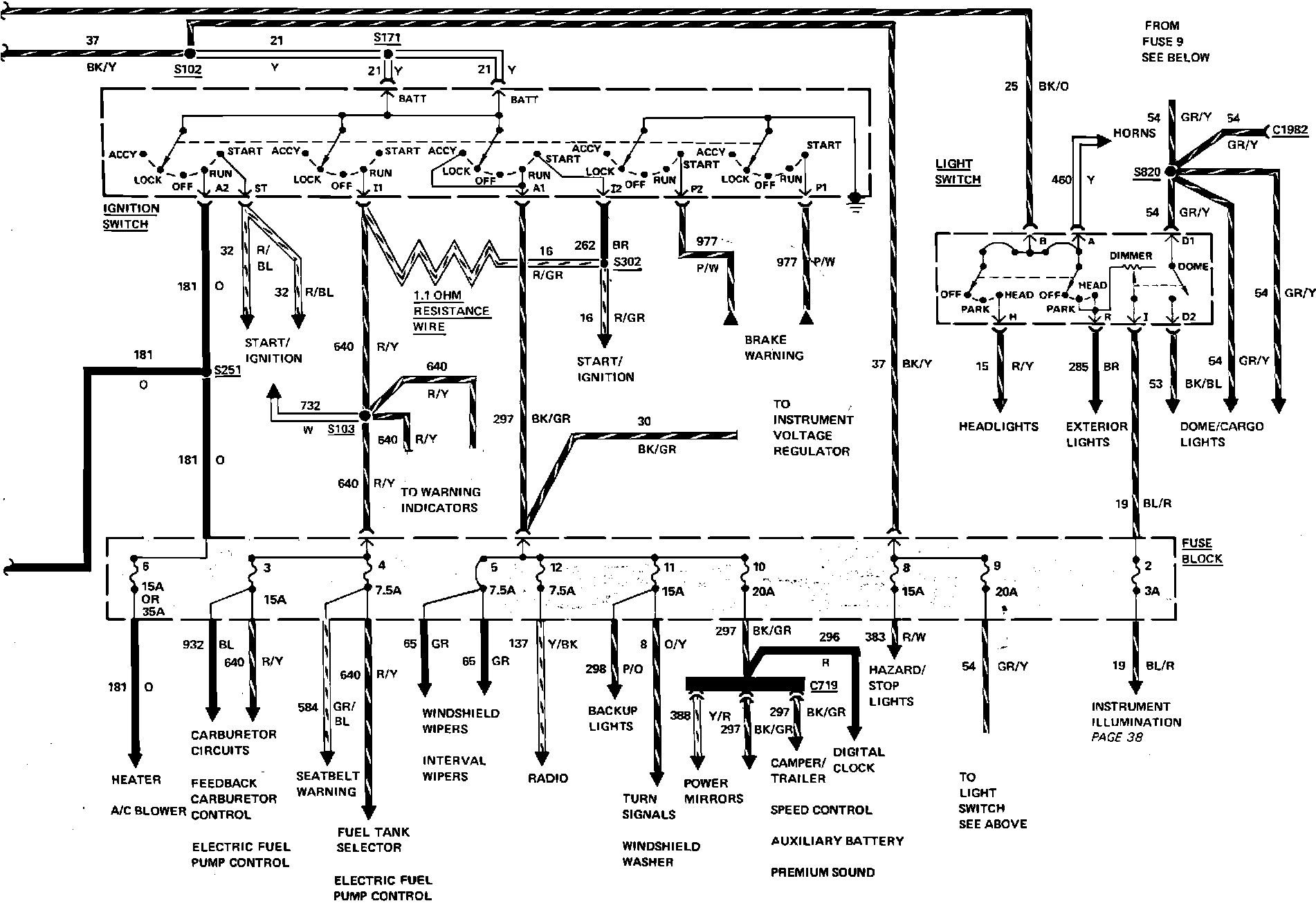

Fig. 26 Charging system & power distribution wiring circuit (Part 2 of 2). 1983 Econoline with gas engine less gauges:

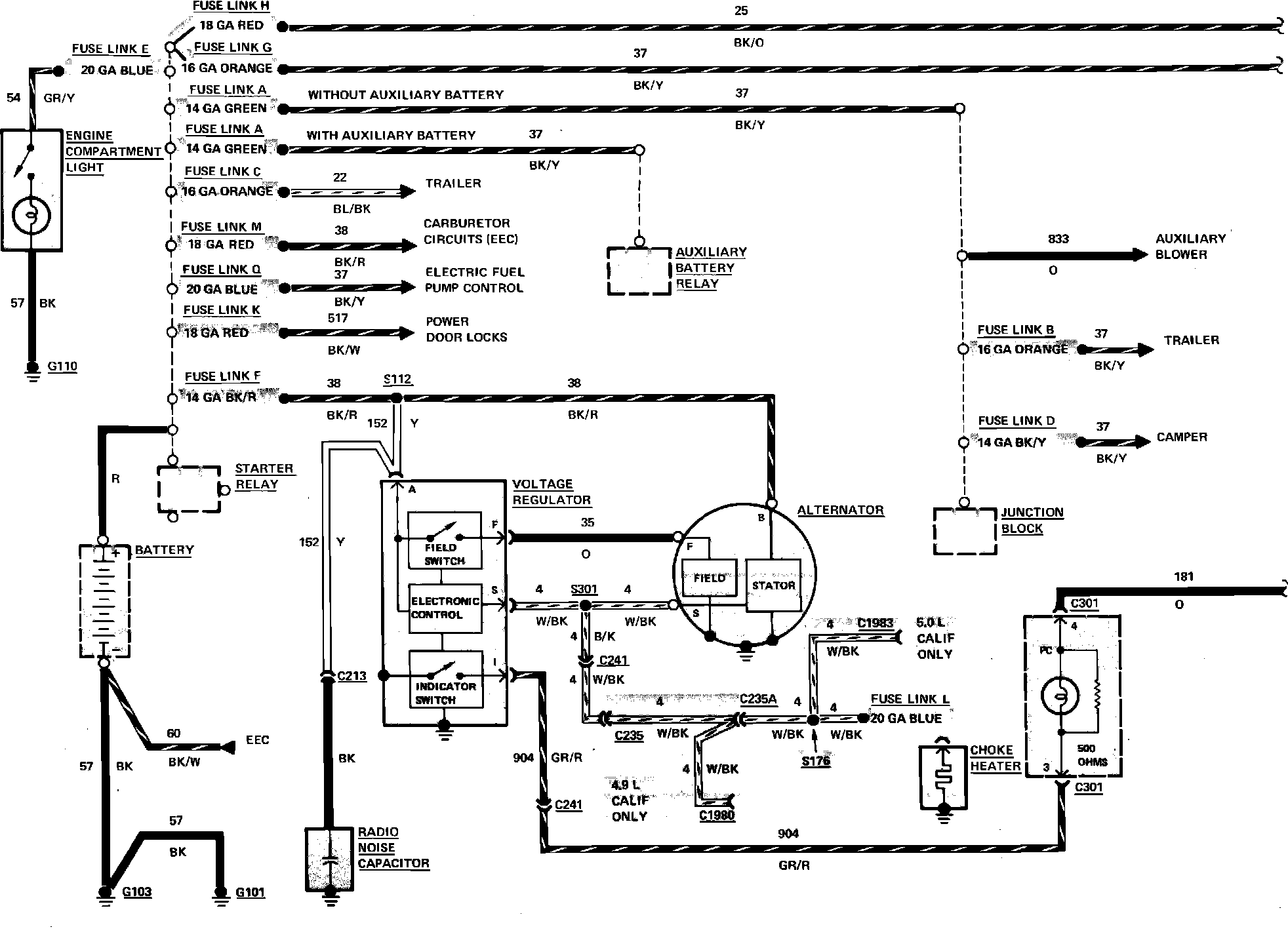

Fig. 26 Charging system & power distribution wiring circuit (Part 1 of 2). 1983 Econoline with gas engine less gauges:
