Mechanical Specifications
>>
Differential Assembly
>>
Differential Technical Data
>>
Ford 6.75 Inch
Ford 6.75 Inch
Ford 6.75 Inch, Differential Gear Ratio:
Ford 6.75 Inch, Differential Backlash:

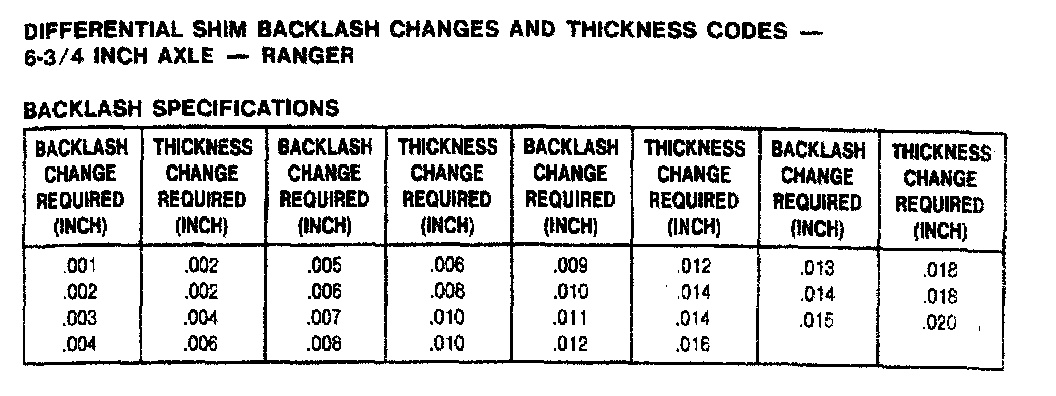

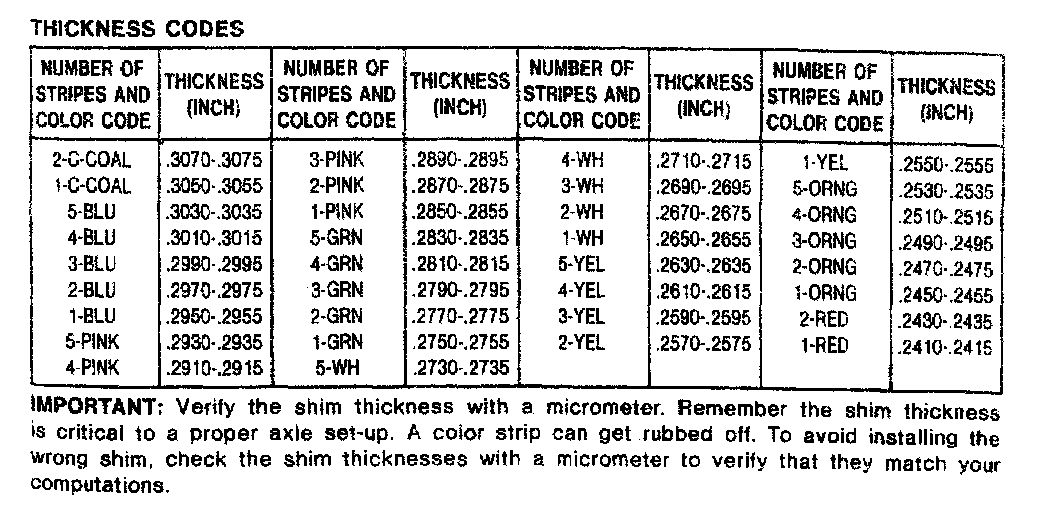

Ford 6.75 Inch, Shim Thickness Chart:

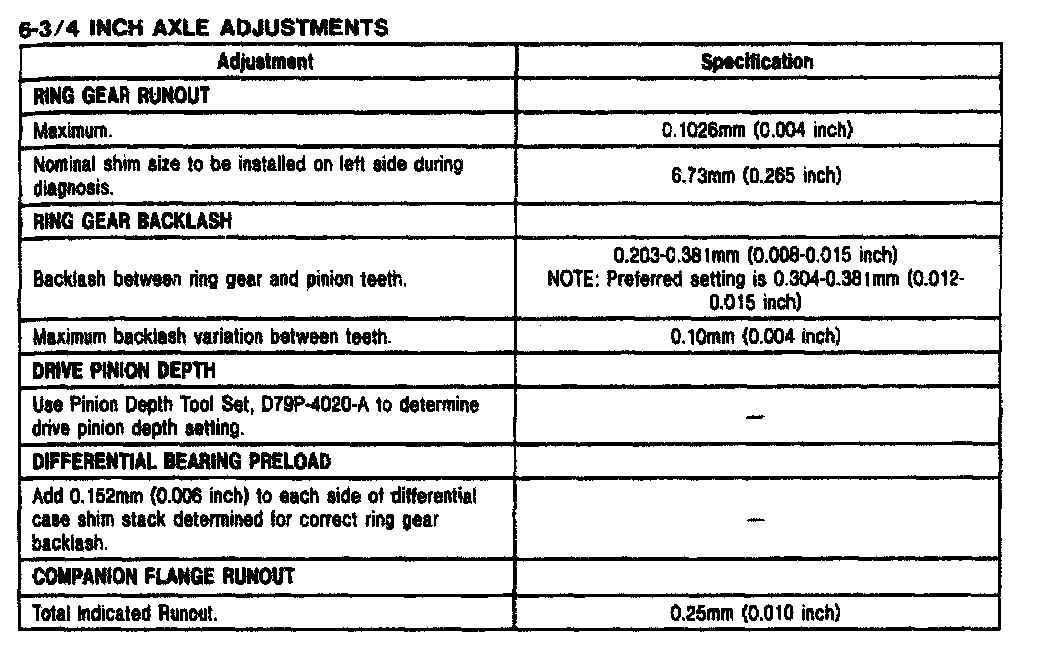

Ford 6.75 Inch, Differential Clearances:
