Home >> Ford >> 1984 >> E 250 Van L6-300 4.9L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls

Engine Controls

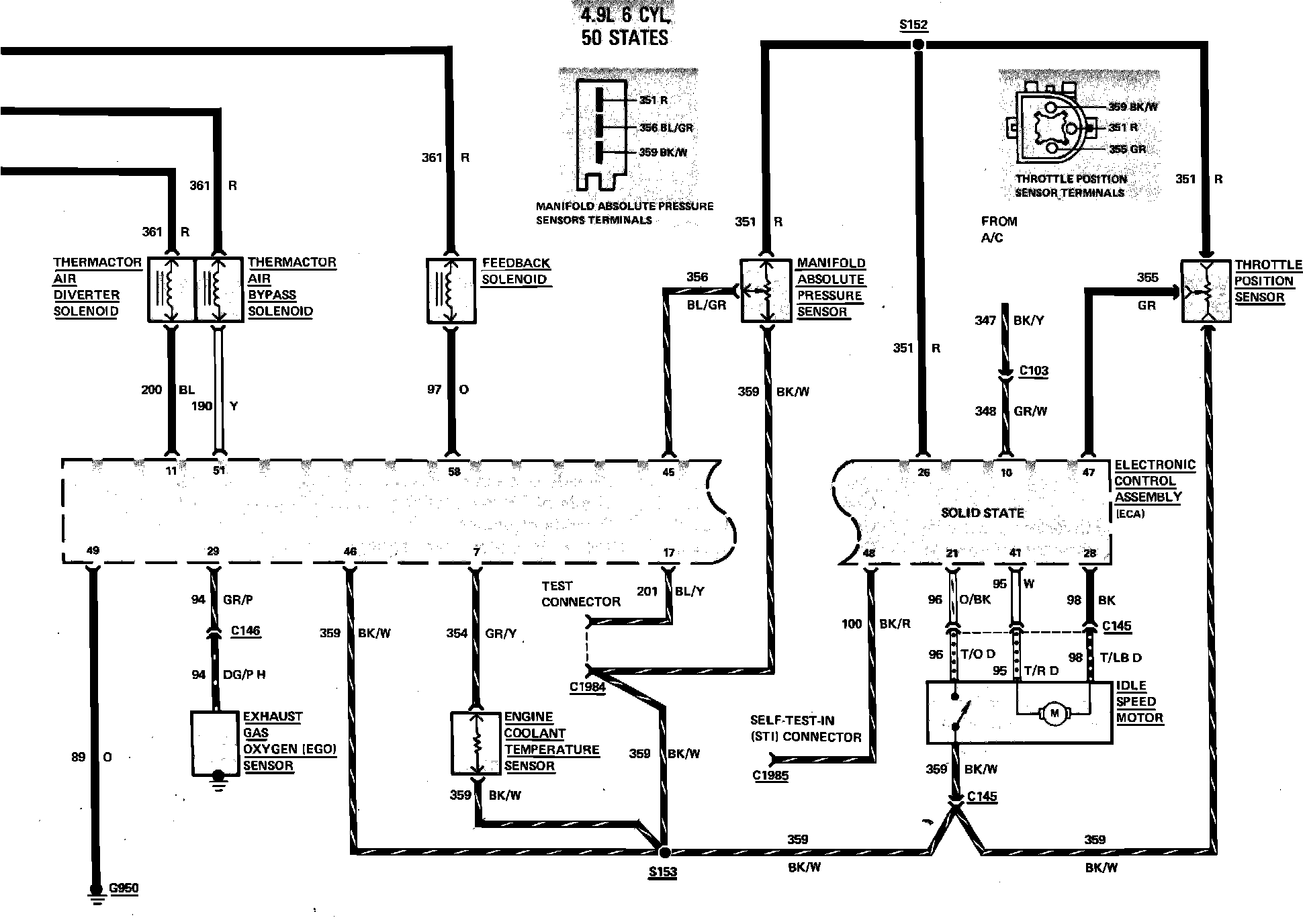

Fig. 57 Electronic engine control wiring circuit (Part 1 of 2). 1984 Econoline with 6-300 engine:

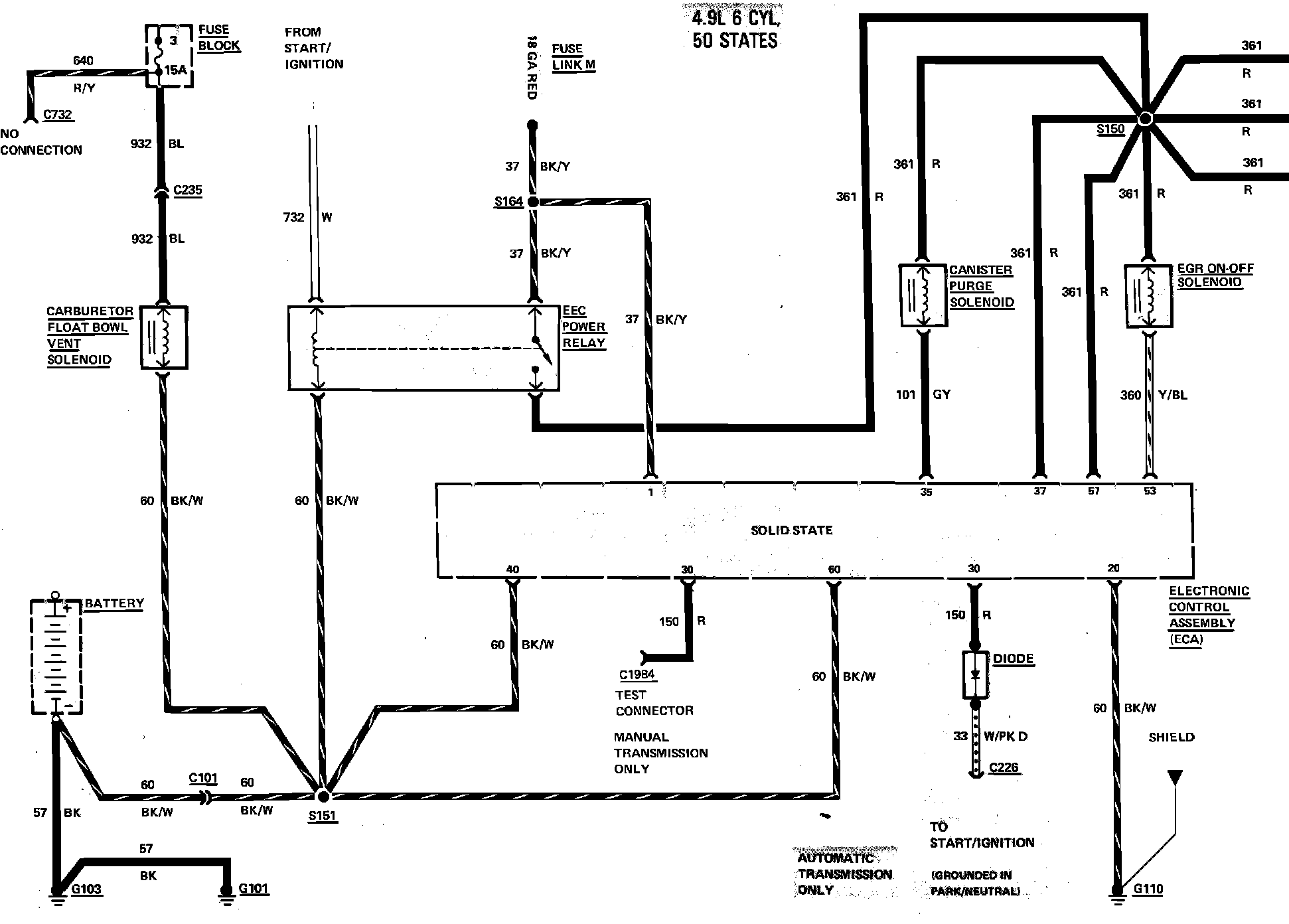

Fig. 57 Electronic engine control wiring circuit (Part 2 of 2). 1984 Econoline with 6-300 engine:
