Engine Controls

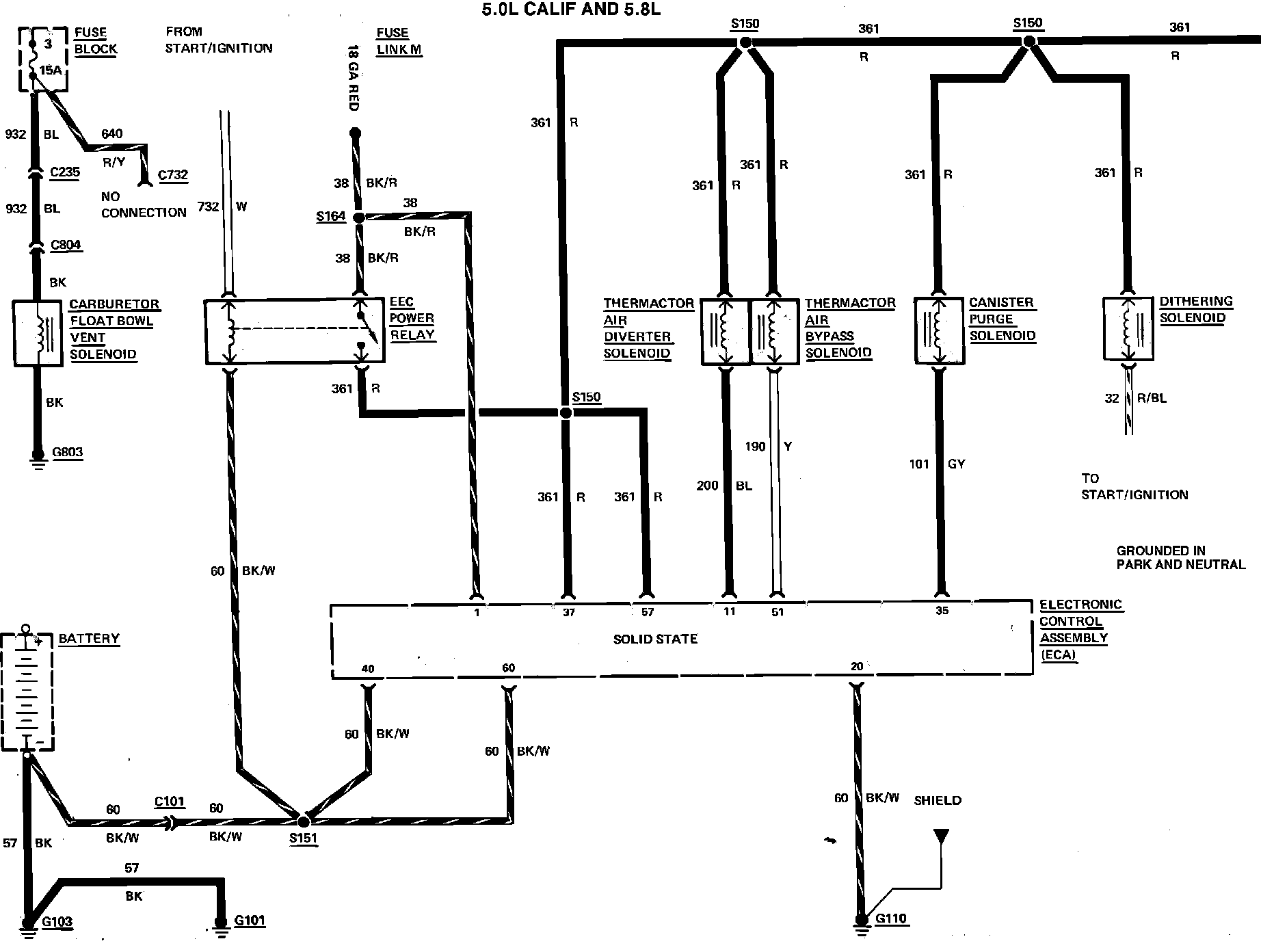

Fig. 58 Electronic engine control wiring circuit (Part 1 of 2). 1984 Econoline with V8 engine:

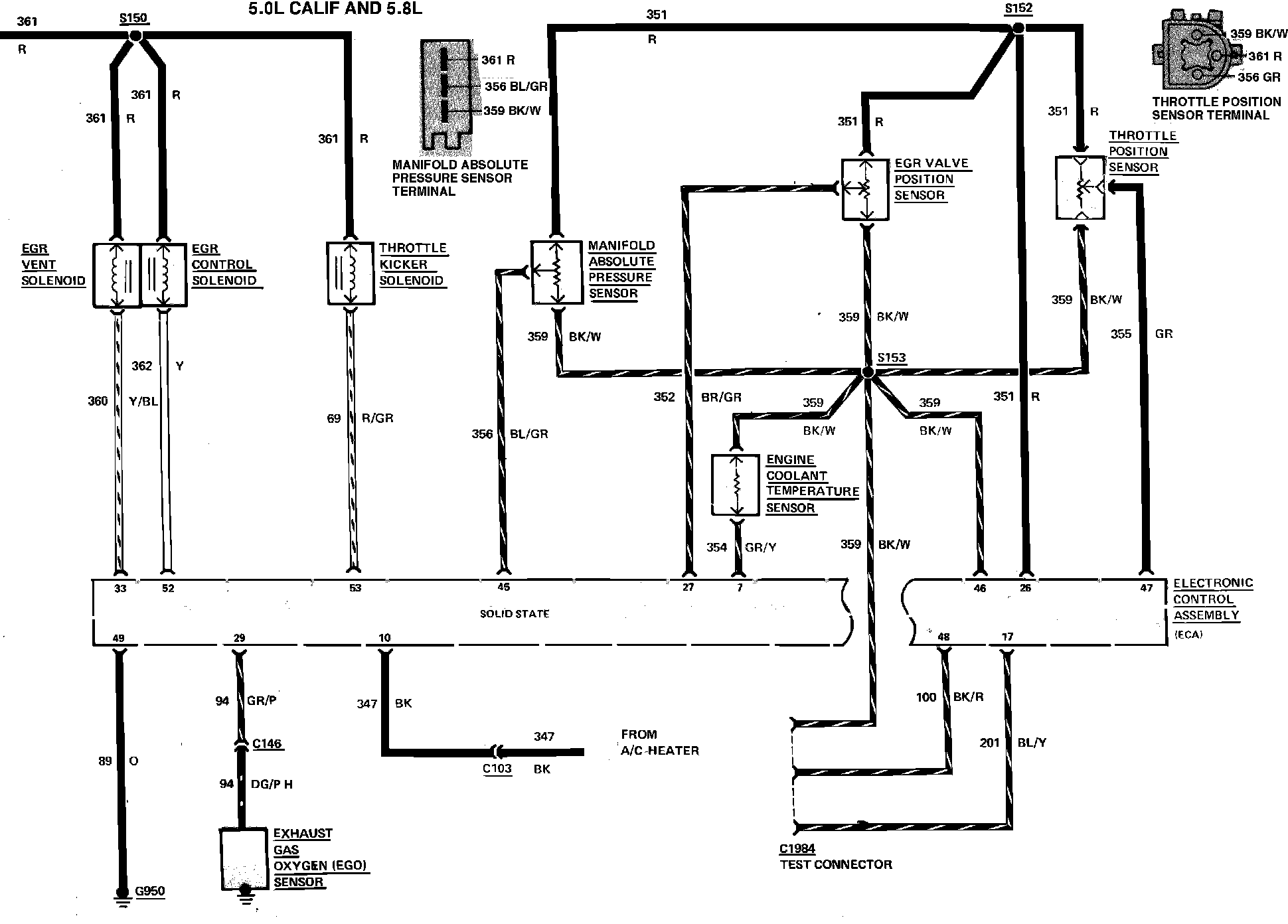

Fig. 58 Electronic engine control wiring circuit (Part 2 of 2). 1984 Econoline with V8 engine:
