Dana 60-3

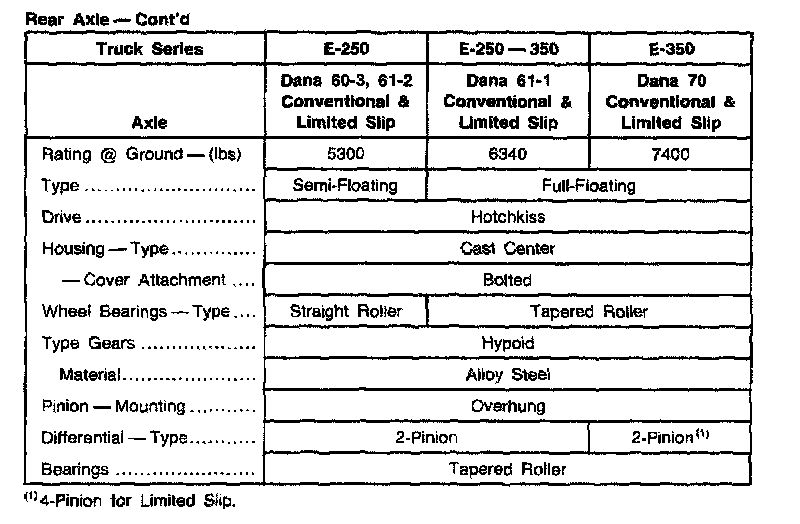

Dana Axle Series (60-3,61-2,61-1, 70):





Dana Axle, Pinion/Carrier Clearance:

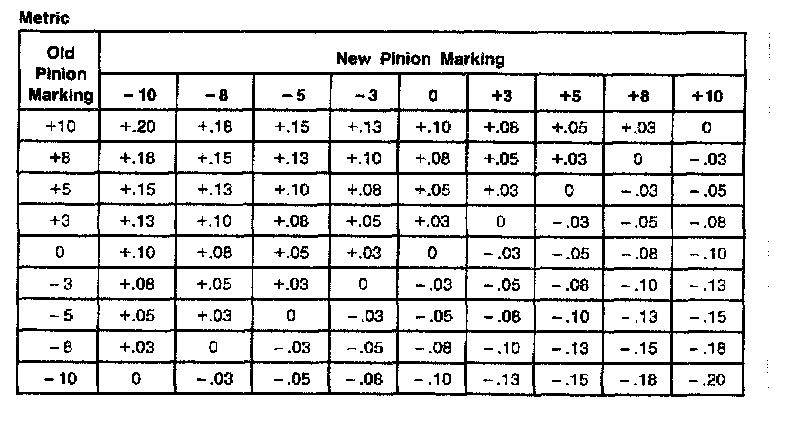

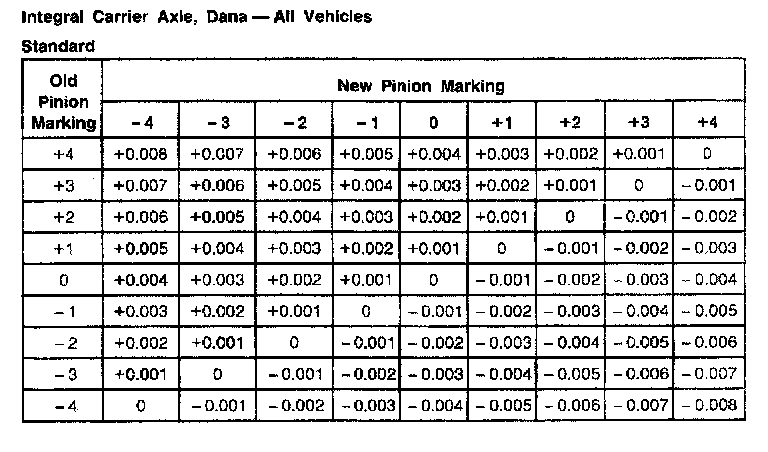

Dana Axle, Pinion Shim Clearance:

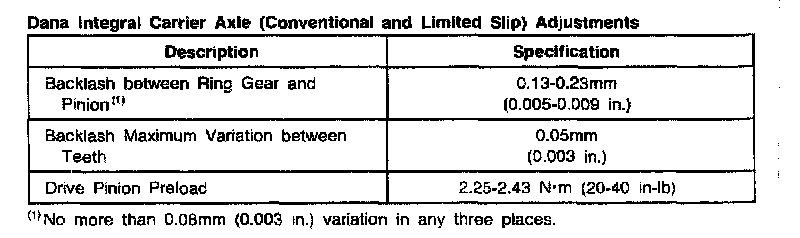

Dana Axle, Ring Gear/Pinion Backlash:
