Vacuum Tests

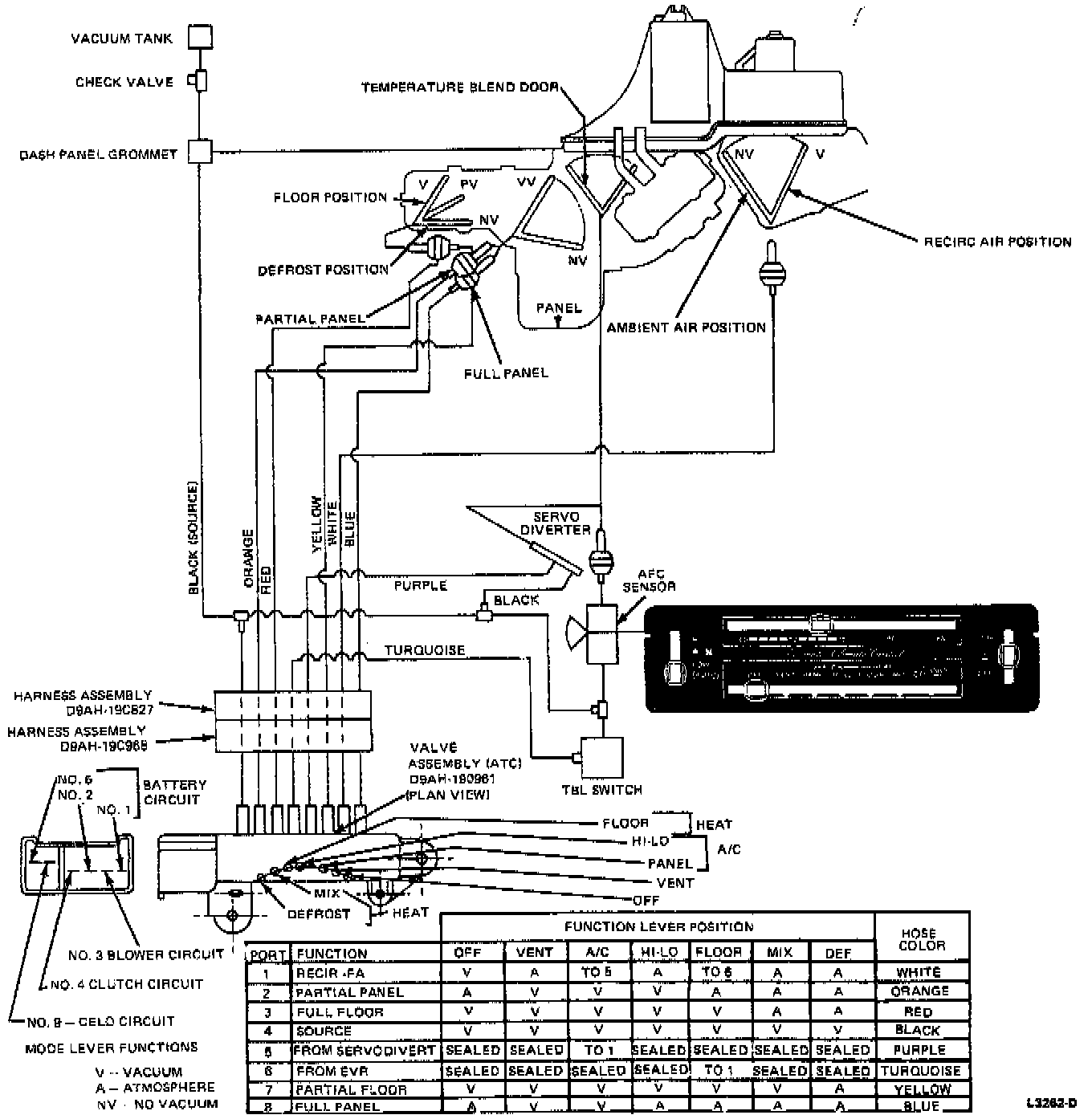

ATC System Airflow Schematic And Vacuum Control Chart:

Refer to the image to assist in performing vacuum system and function selector valve tests. Also refer to the ATC system vacuum leak diagnosis chart. Hissing ATC Vacuum System or Control Assembly Selector Valve
