Engine Control Module
Engine Control Module

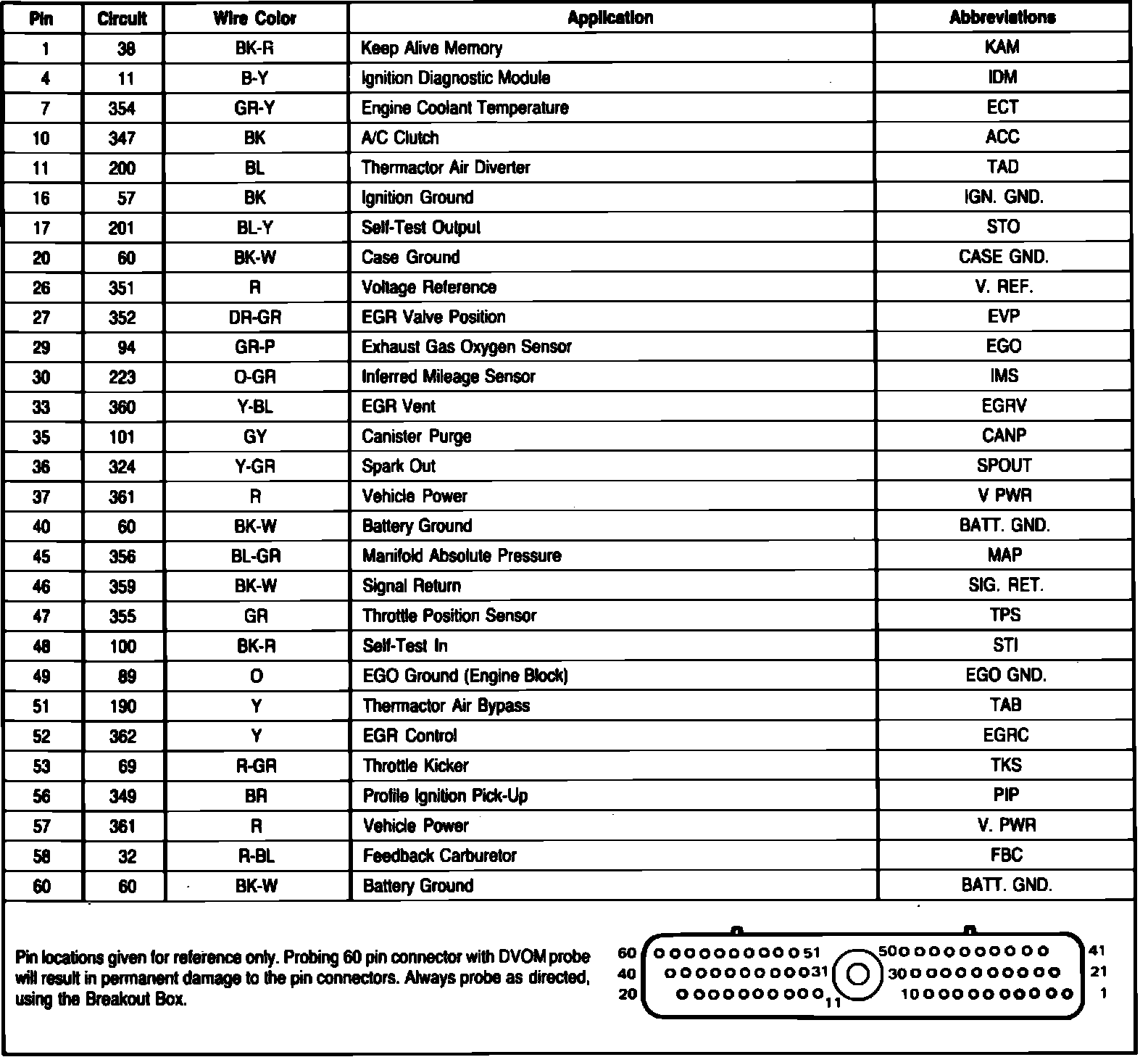

Fig. 133 EEC-IV connector terminal identification. V8-302 & 351 FBC E Series:
