Cooling System
>>
Radiator Cooling Fan Control Module
>>
With Automatic Transmission/Transaxle
With Automatic Transmission/Transaxle

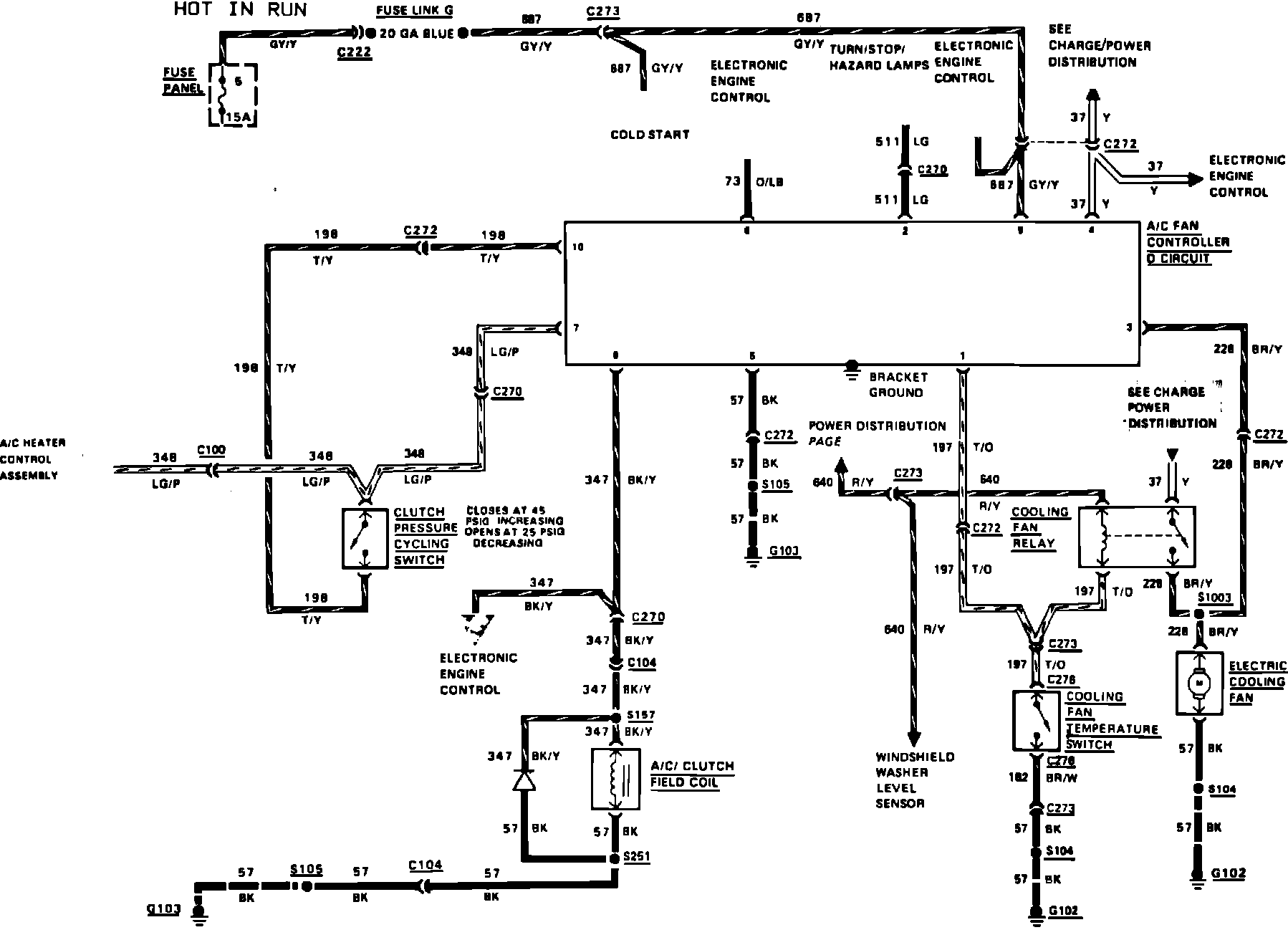

Fig. 6 Air Conditioning, Heater & Cooling Fan Wiring Circuit. 1.9L Engine With Automatic Trans.:
