Escort & Lynx 5 Door Hatchback & Liftgate

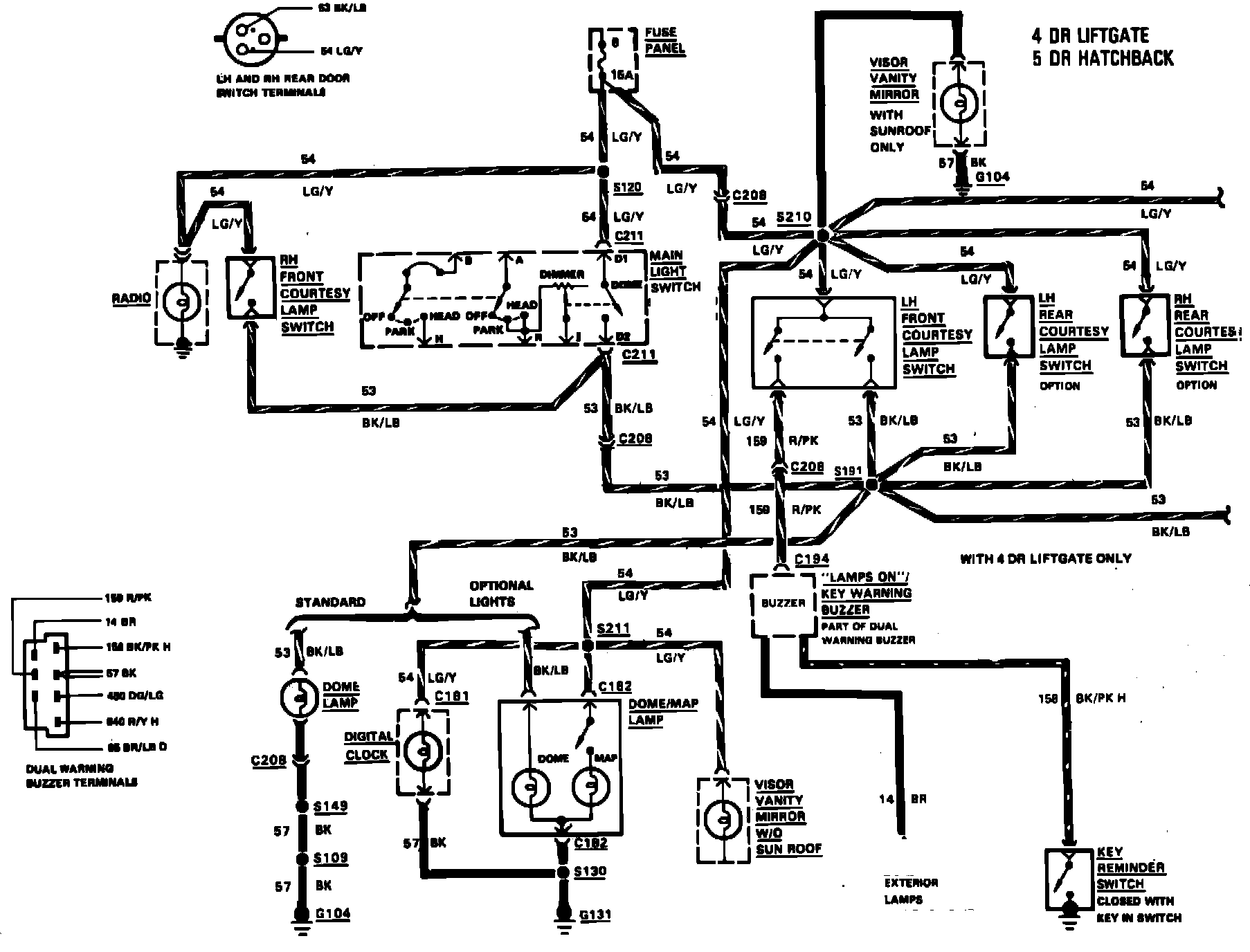

Fig. 16 Courtesy Lamps, Key Warning & Lamps On Reminder Wiring Circuit (Part 1 of 2) Escort & Lynx 5 Door Hatchback & Liftgate:



Fig. 16 Courtesy Lamps, Key Warning & Lamps On Reminder Wiring Circuit (Part 2 of 2) Escort & Lynx 5 Door Hatchback & Liftgate:
