Doors: Tools and Equipment

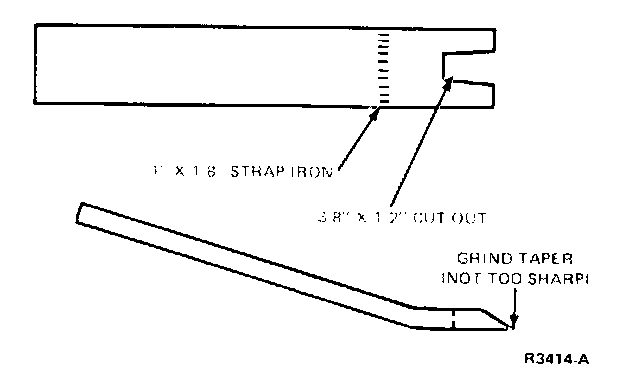

Fabricated Push Pin Removal Tool:

The door trim panel removal procedures from model years 1982 to 1989 are rather similar in several areas, one difference is with the recommended tools, included here for your reference.

1982-1984 - using a wide bladed tool
1985 - using a fabricated tool
1986 - using a Fabricated Push Pin Removal Tool
1987 - using the Trim Pad Removing Tool from Rotunda Moulding/Trim Kit
part # 062-00004
1988-1989 - using the Trim Pad Removing Tool from Rotunda Moulding/Trim Kit
part # 107-00401
