A/C - Revised EVTM Schematic Drawing

Article No. 85-14-19


AIR CONDITIONING - 2.3L TURBO DIESEL - REVISED EVTM SCHEMATIC DRAWING

LIGHT TRUCK 1985-86 RANGER

If new 1985-86 Ranger trucks with 2.3L turbo diesel engines experience an inoperative air conditioning system, the cause may be traced to an A/C Cutout Control Module not being installed or being defective. This part was missing from the A/C - Heater schematic drawing, page 40s, of the 1985 Ranger/Bronco II Electrical and Vacuum Trouble-Shooting Manual, Diesel Supplement.

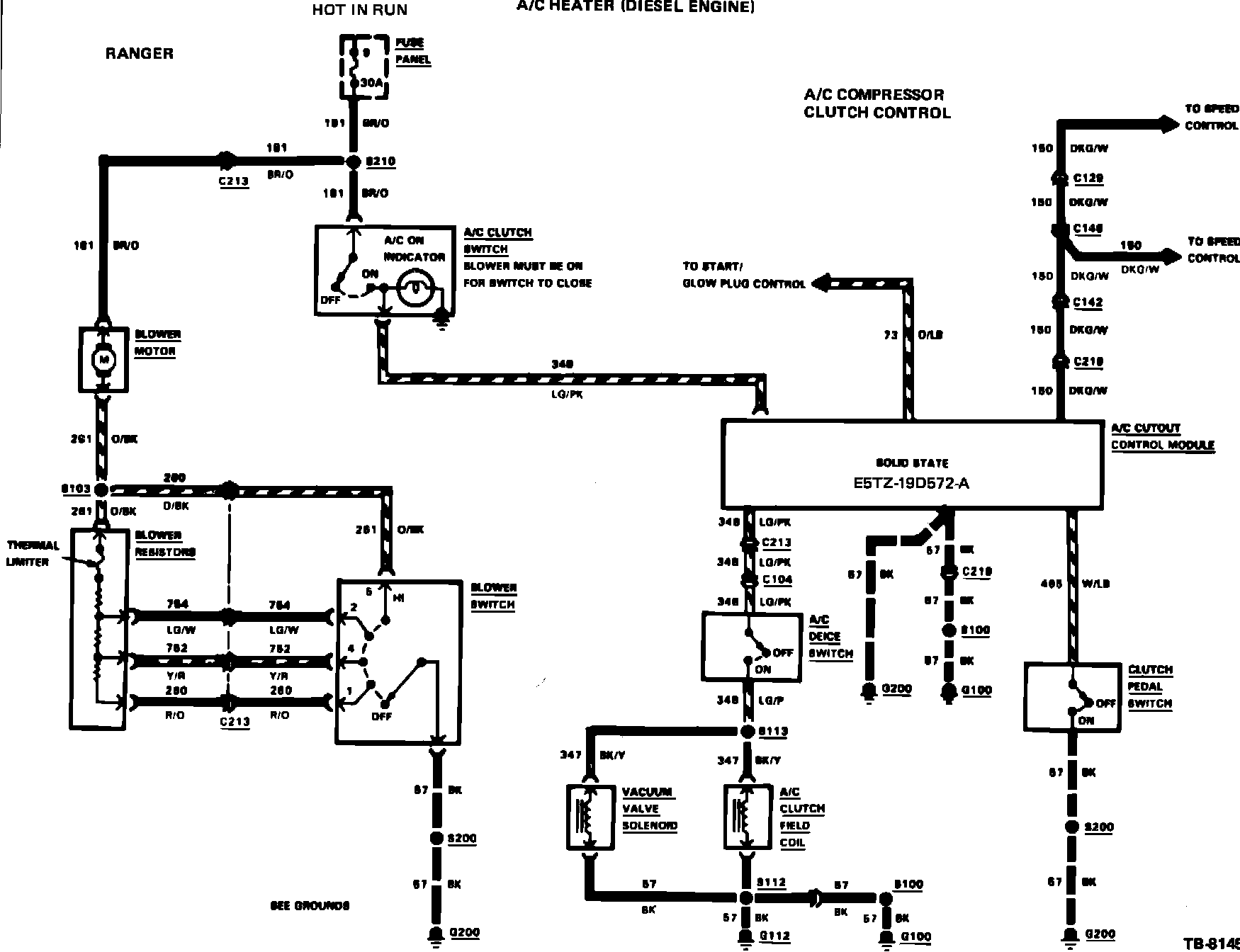

Figure 20 - A/C HEATER (DIESEL ENGINE):

Figure 20 shows the correct A/C Heater schematic drawing.
OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: "INFORMATION ONLY"
