Engine Control Module
Engine Control Module

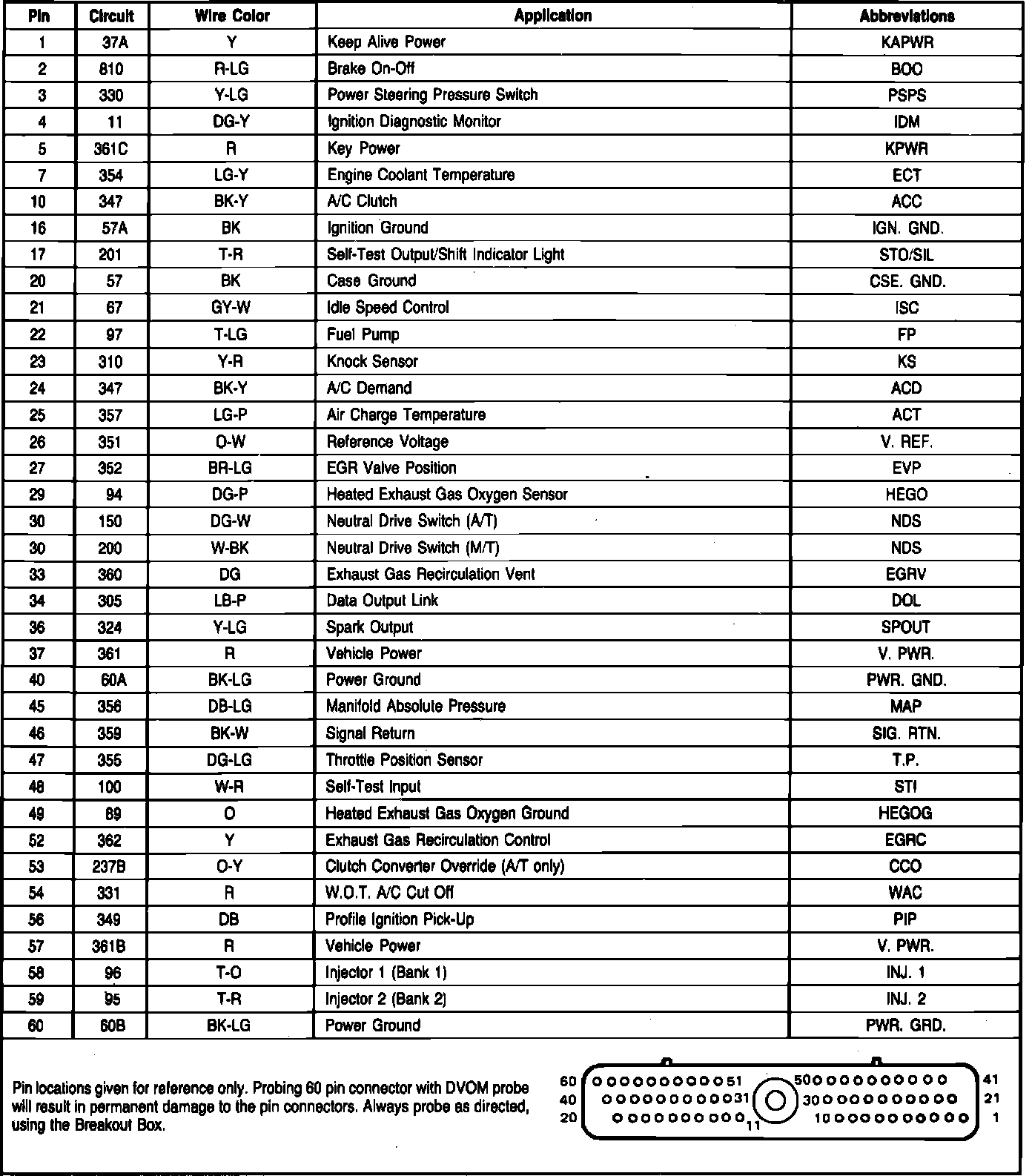

Fig. 160 EEC-IV connector terminal identification. 1986 4-140 Aerostar:
