Engine Controls

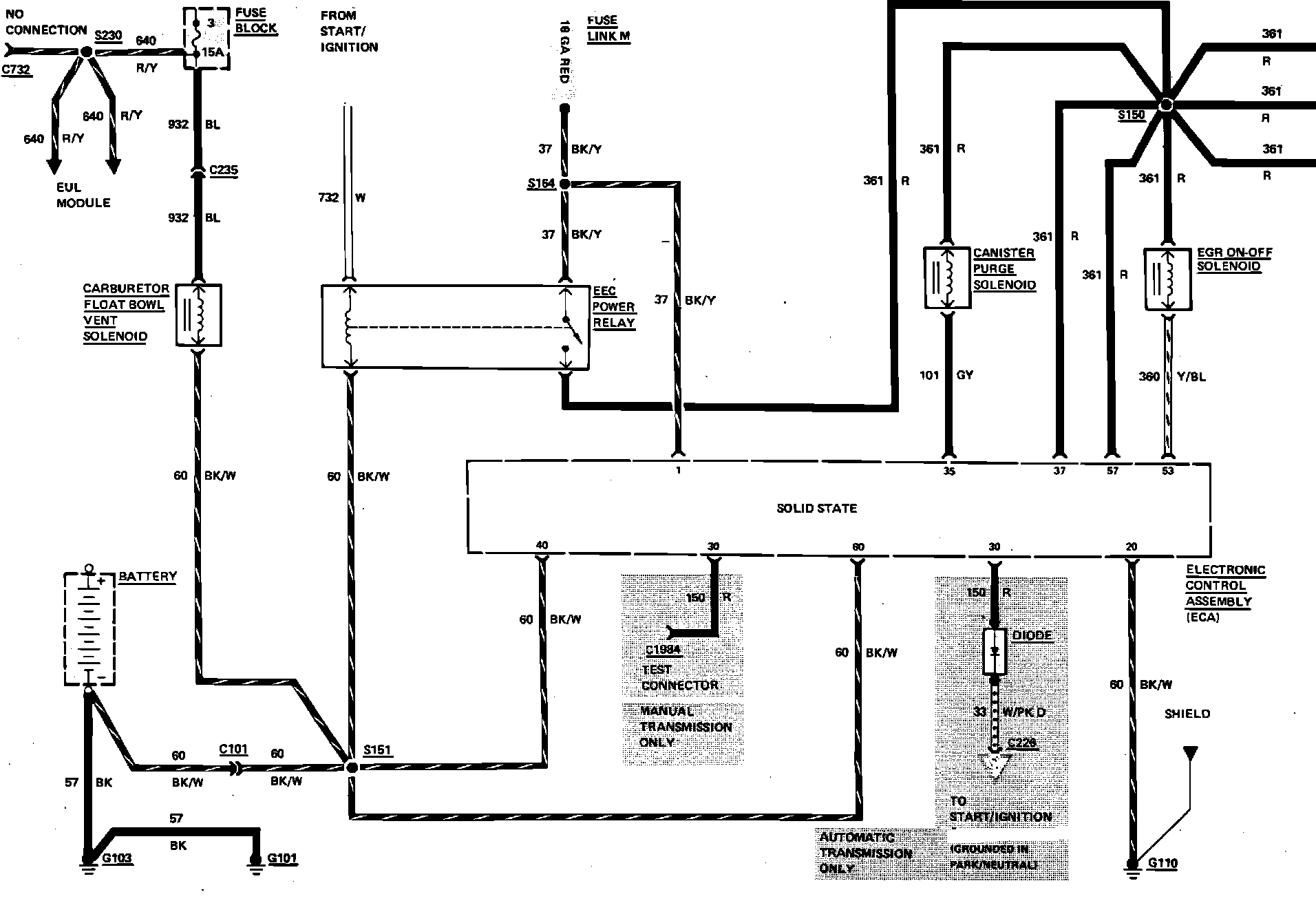

Fig. 19 Electronic Engine Control Wiring Circuit (Part 1 of 2). 6-300 Engine:

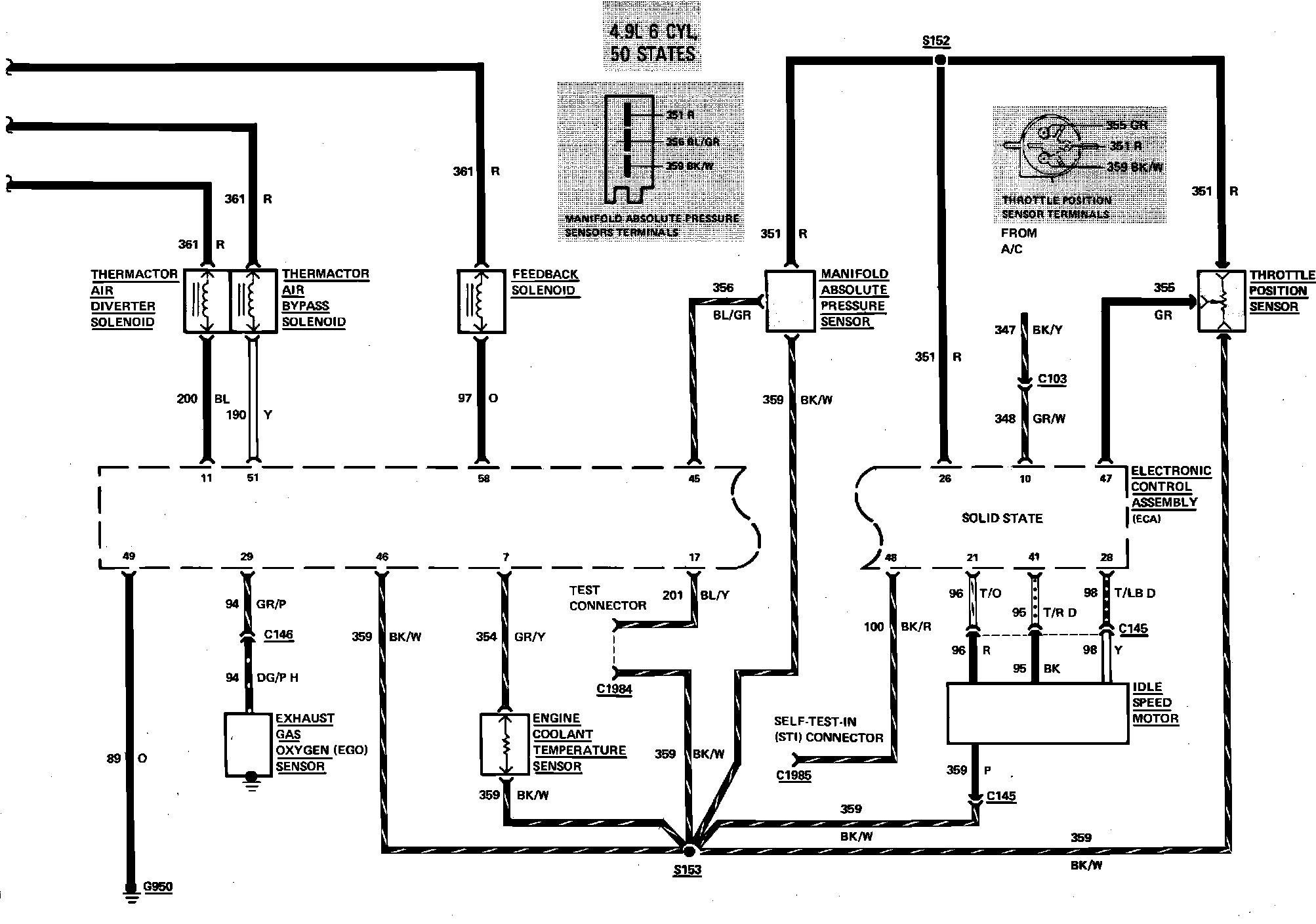

Fig. 19 Electronic Engine Control Wiring Circuit (Part 2 of 2). 6-300 Engine:
