Home >> Ford >> 1986 >> E 150 Van L6-300 4.9L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> With A/C >> Part 2 of 2

Part 2 of 2

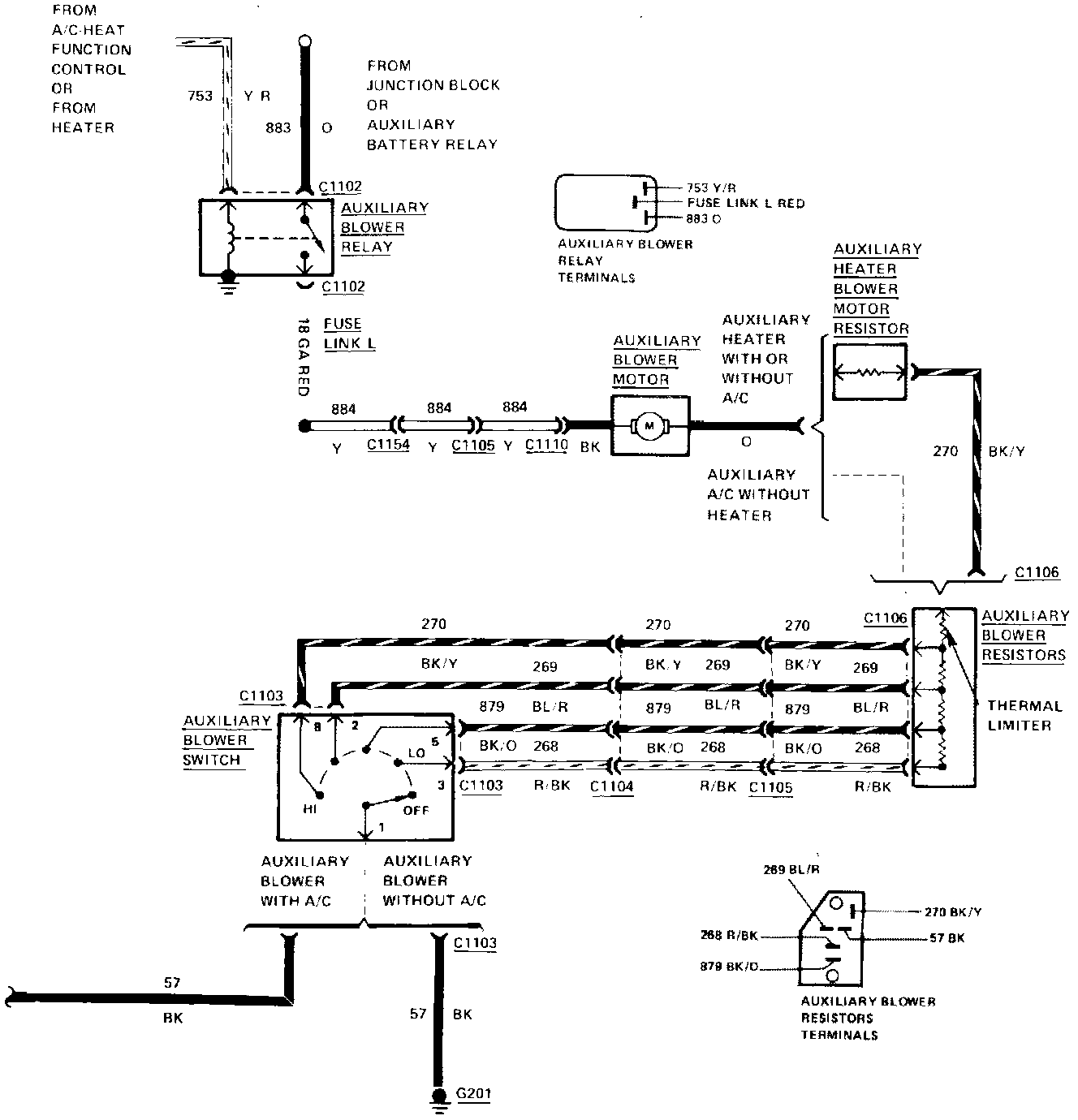

A/C Heater Wiring Diagram:
