5.0 - Engine Running Self-Test
5.0 - Engine Running Self-Test

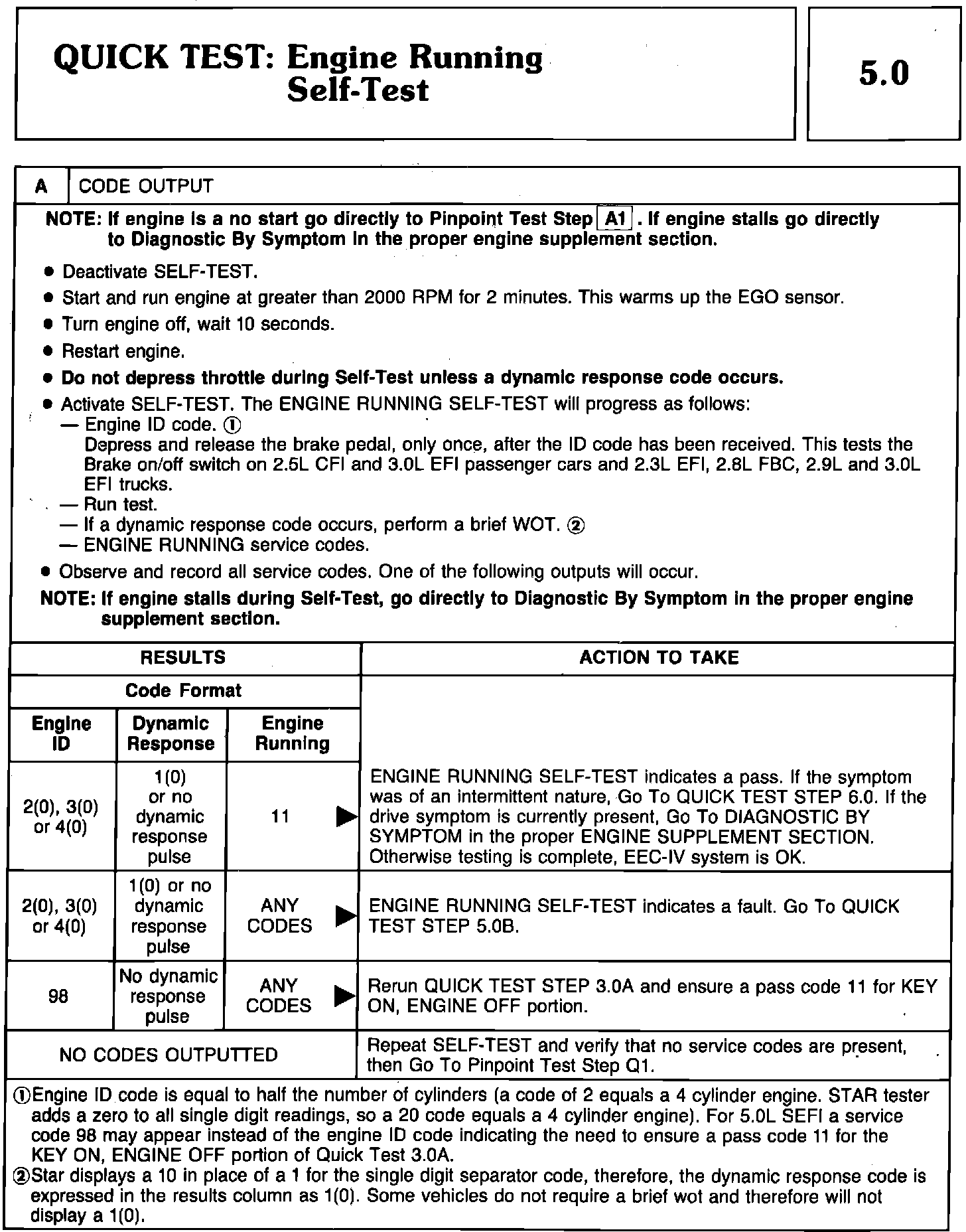

Quick Test 5.0A - KOER Self-Test & Code Output:

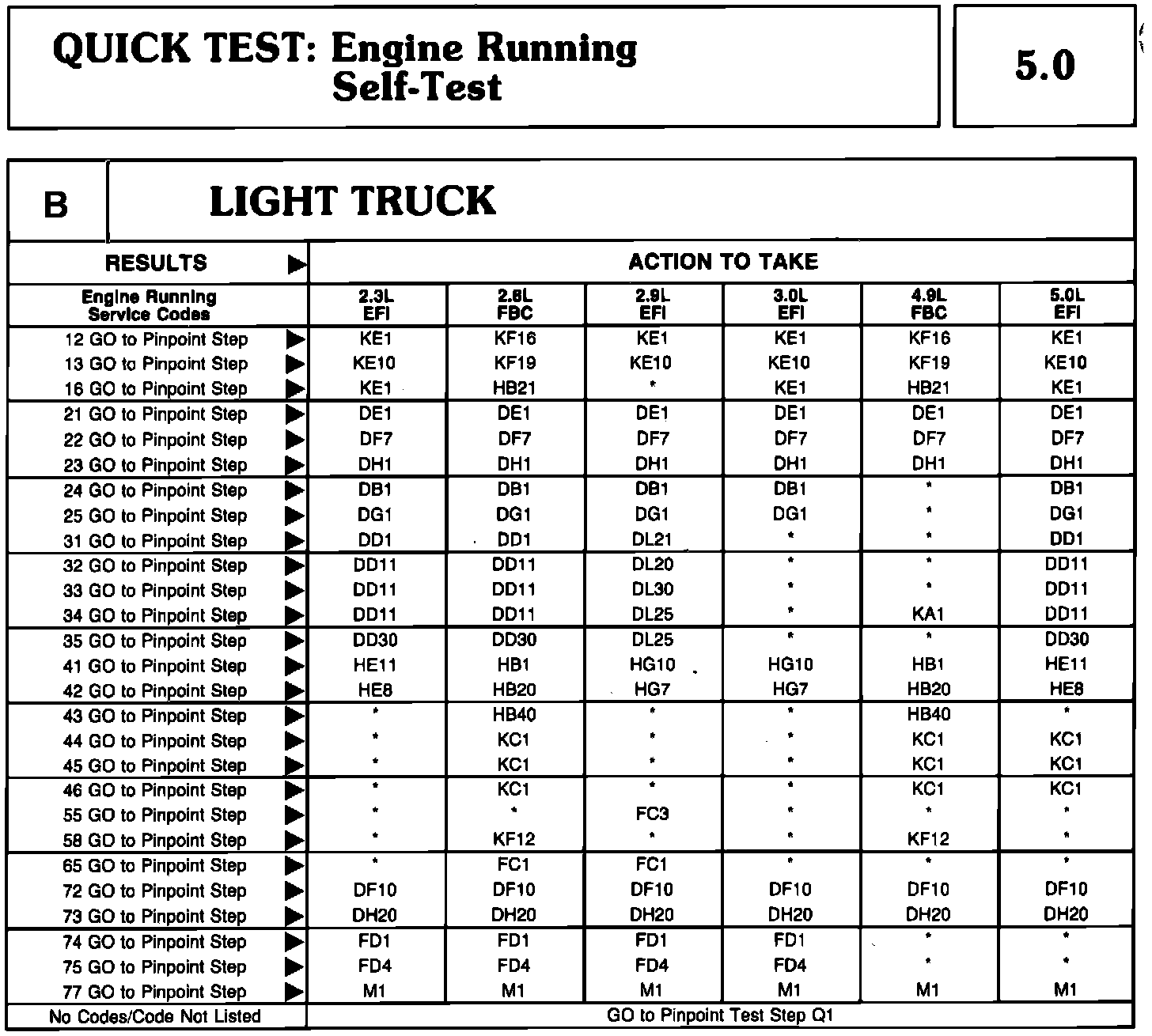

Engine Running Self-Test 5.0 (Part B):
