Home >> Ford >> 1986 >> E 150 Van L6-300 4.9L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Charging System >> With Ammeter & Integral Regulator

With Ammeter & Integral Regulator

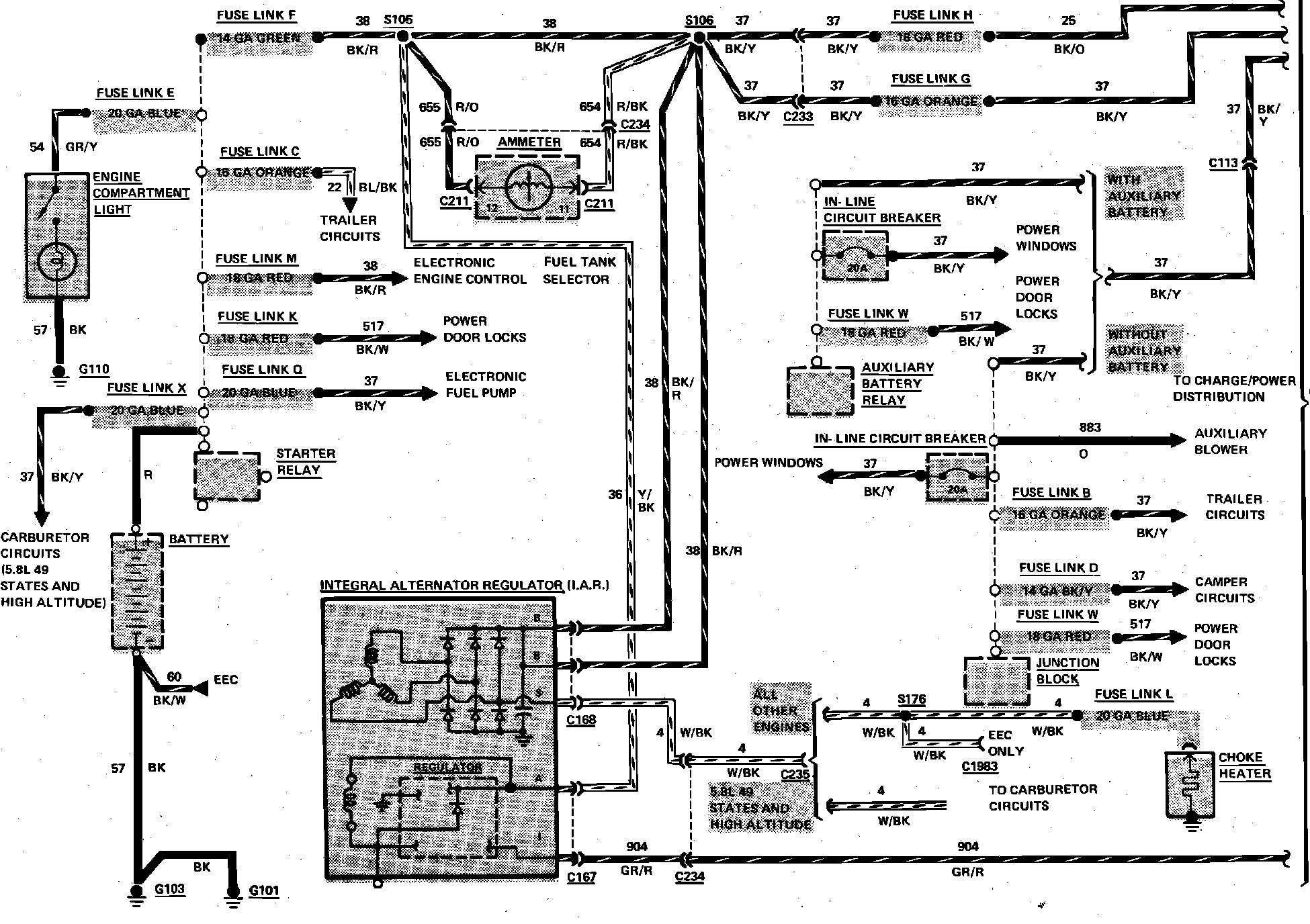

Fig. 15 Charging System & Power Distribution Wiring Circuit (Part 1 of 2). Models W/Ammeter & Integral Regulator (Gasoline Engine):

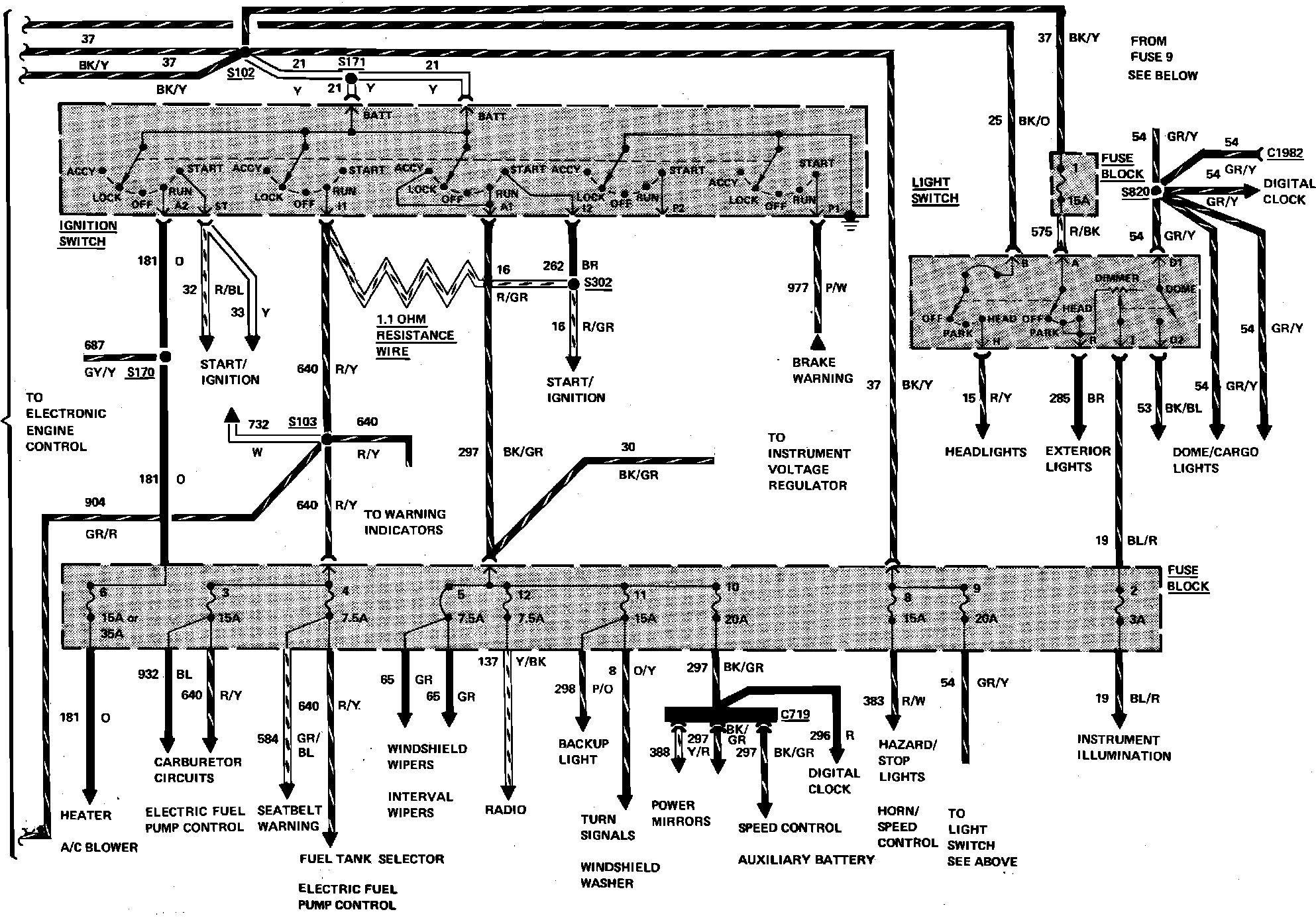

Fig. 15 Charging System & Power Distribution Wiring Circuit (Part 2 of 2). Models W/Ammeter & Integral Regulator (Gasoline Engine):
