With Ammeter & Less/Integral Regulator

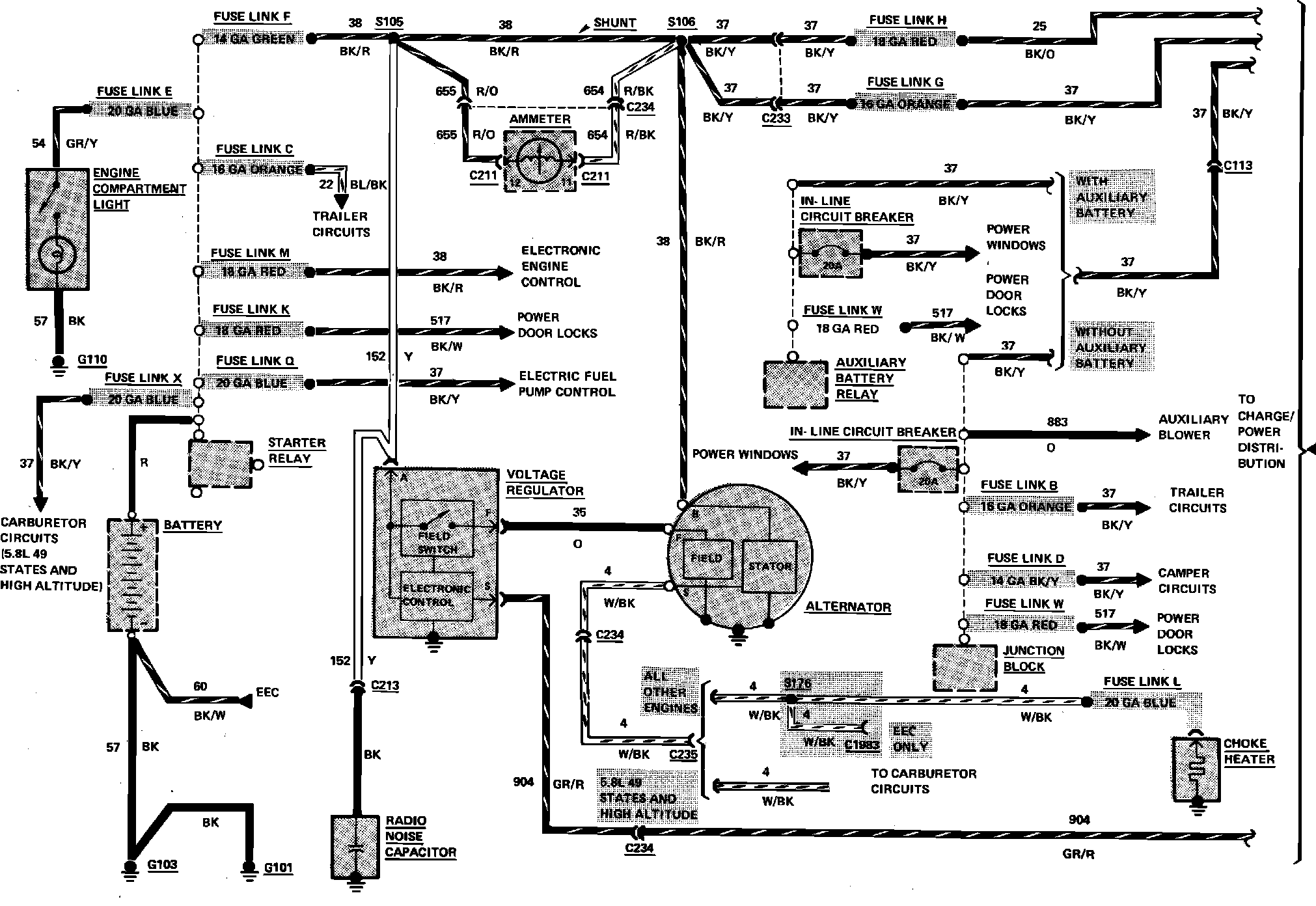

Fig. 14 Charging System & Power Distribution Wiring Circuit (Part 1 of 2). Models W/Ammeter & Less Integral Regulator (Gasoline Engine):



Fig. 14 Charging System & Power Distribution Wiring Circuit (Part 2 of 2). Models W/Ammeter & Less Integral Regulator (Gasoline Engine):
