Vacuum and Vapor Hose Diagrams
Vacuum and Vapor Hose Diagrams

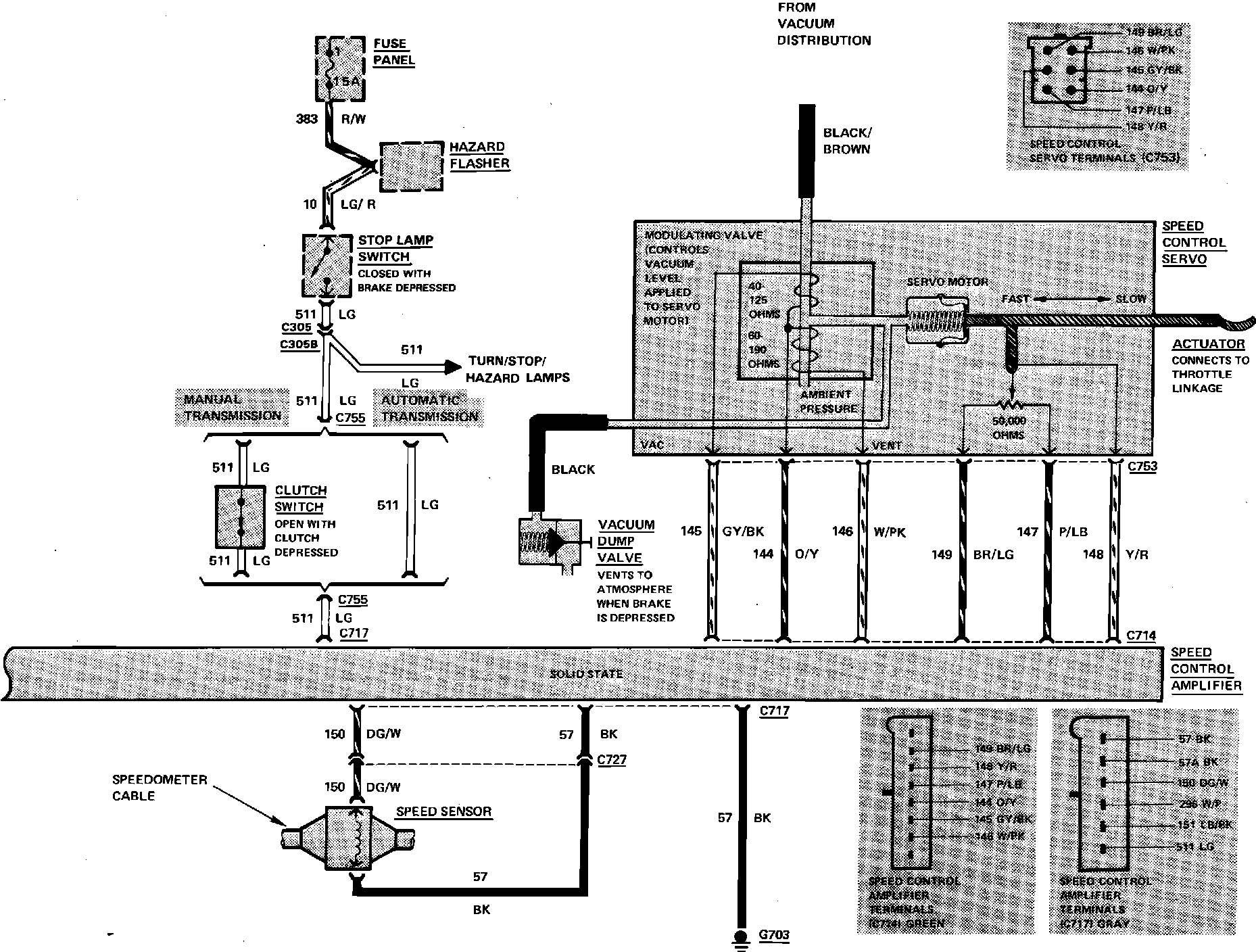

Fig. 49 Speed Control System Wiring Circuit (Part 1 of 2):
Fig. 49 Speed Control System Wiring Circuit (Part 2 of 2):
