Connector Views
Connector Views

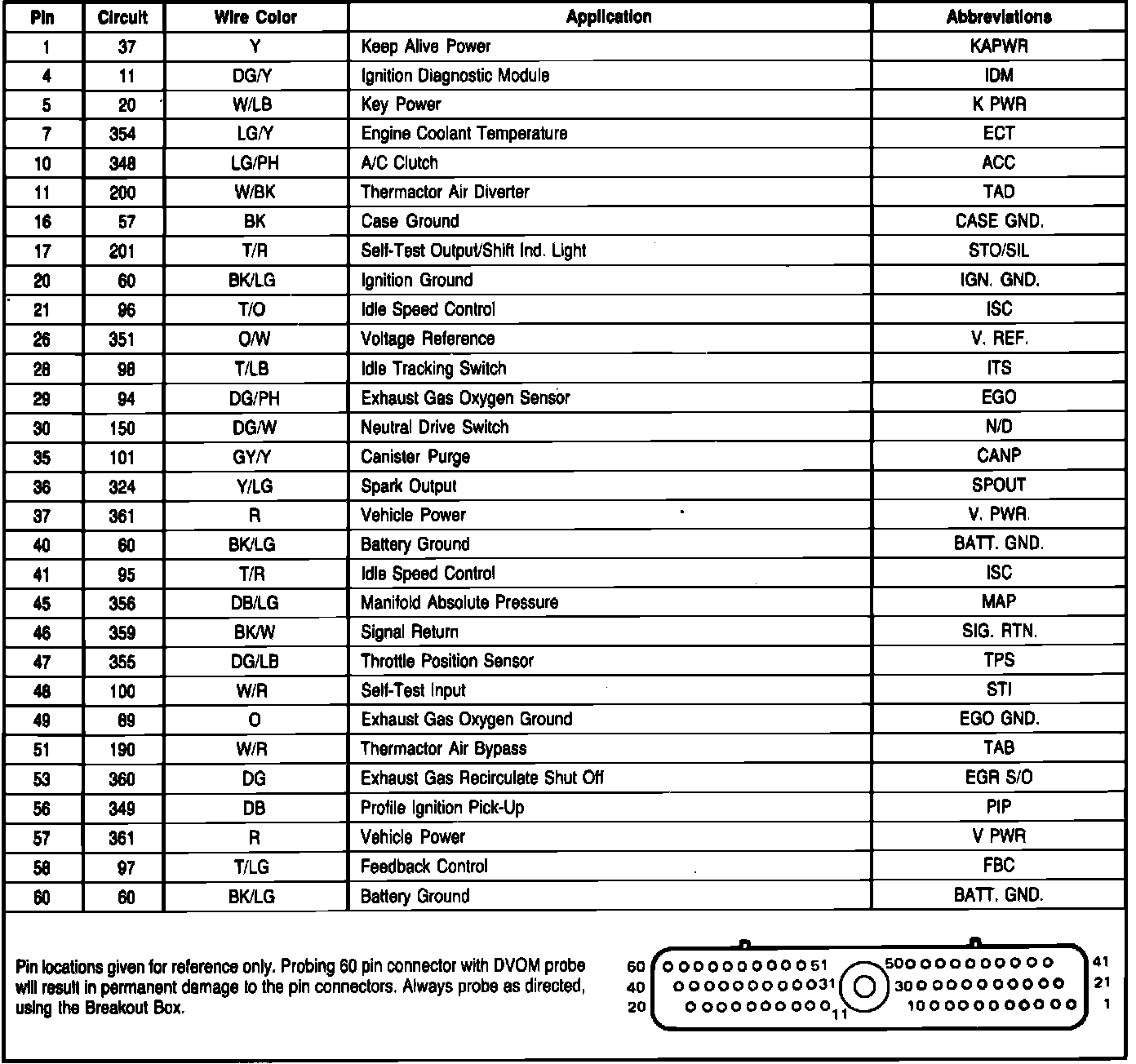

Fig. 169 EEC-IV connector terminal identification. 1986 6-300 Bronco & F Series:
