Home >> Ford >> 1986 >> Mustang V8-302 5.0L HO >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Hazard Warning Lamps >> System Diagram

System Diagram

Fig. 33 Hazard, Stop & Turn Signal Wiring Circuit (Part 1 of 2). Mustang:

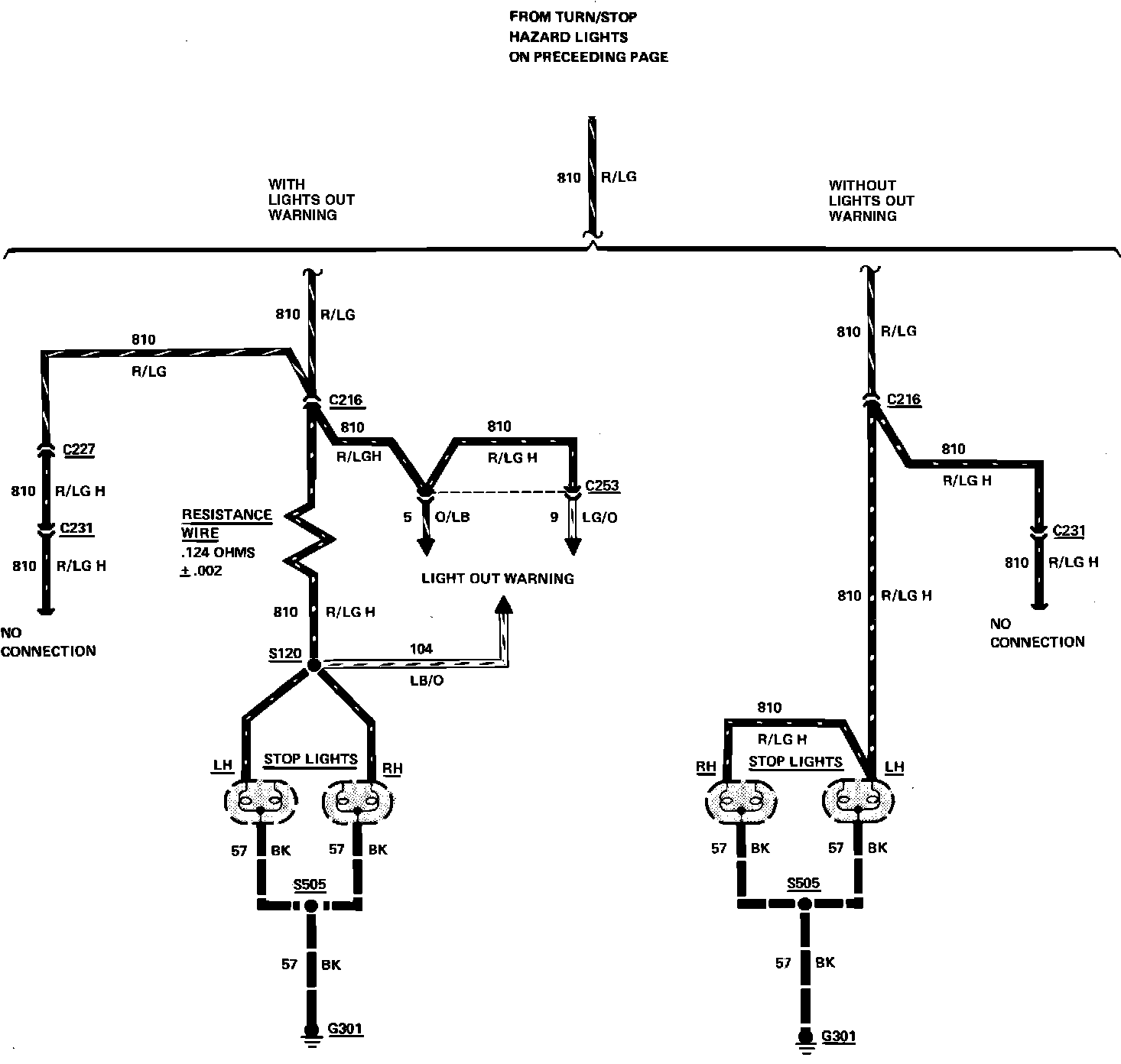

Fig. 33 Hazard, Stop & Turn Signal Wiring Circuit (Part 2 of 2). Mustang:
