A/T - A4LD Proper Overdrive Sprag Assembly Installation

TSB 86-60 (Nov)

SUBJECT: A4LD

CORRECT SPRAG ROTATION

CHECKING:
Most technical manuals do not show how to check for proper installation of overdrive sprag assembly.

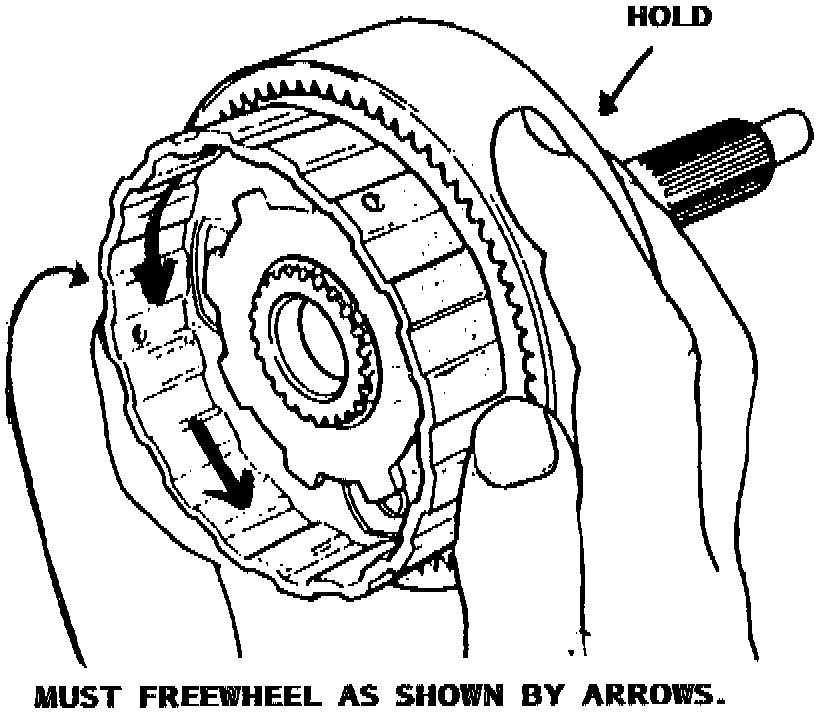

Hold internal ring gear (as shown in Figure). The O.D. planetary should freewheel in the direction indicated by arrows.
