Engine Controls

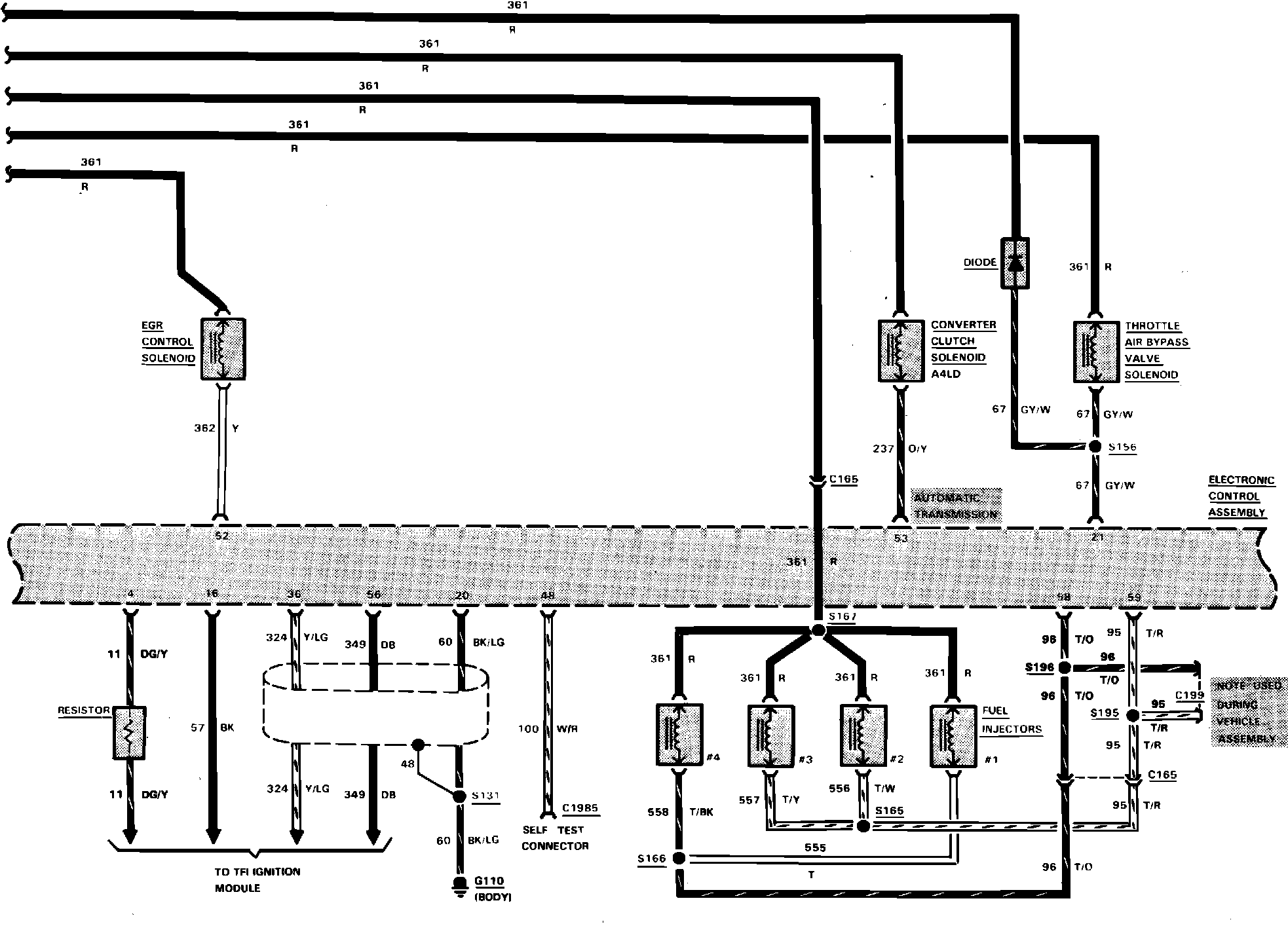

Fig. 15 Electronic Engine Control (EEC) System Wiring Circuit (Part 1 of 3). Models With 2.3L (4-140) Gasoline Engine:






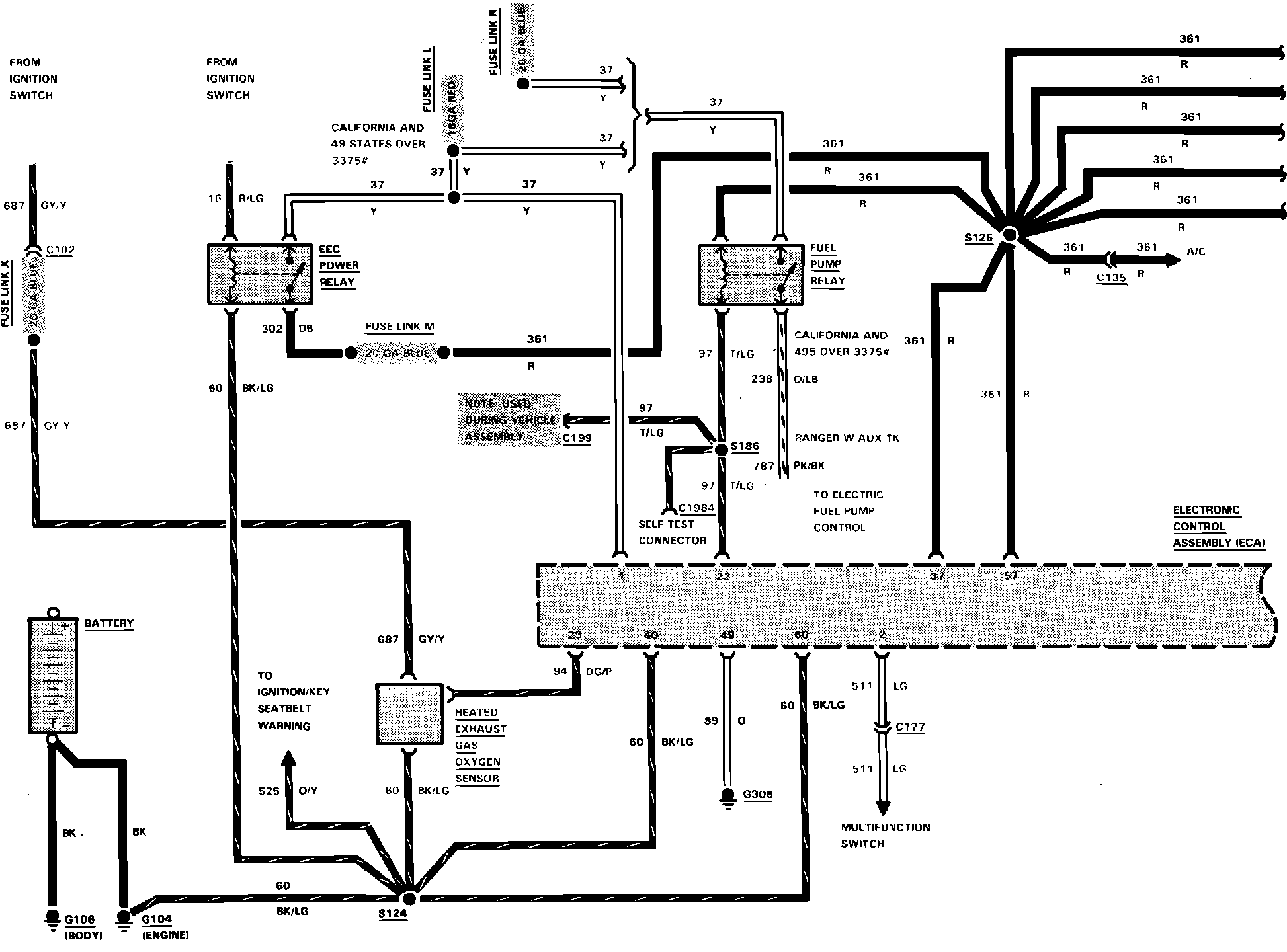

Fig. 15 Electronic Engine Control (EEC) System Wiring Circuit (Part 2 of 3). Models With 2.3L (4-140) Gasoline Engine:






Fig. 15 Electronic Engine Control (EEC) System Wiring Circuit (Part 3 of 3). Models With 2.3L (4-140) Gasoline Engine:
