Blower Motor: Service and Repair

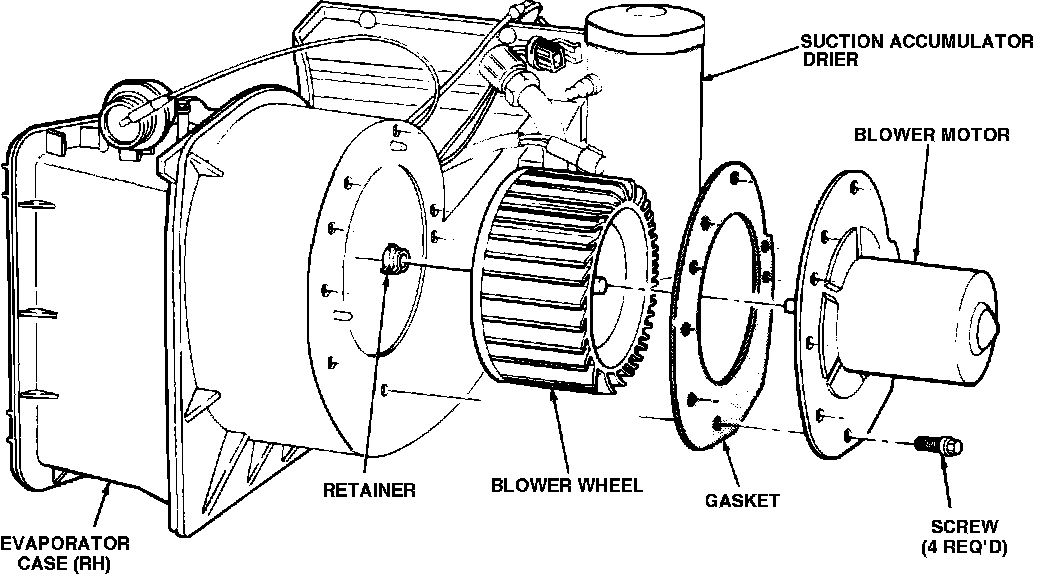

Fig. 27 Disassembled view of blower motor & wheel assembly:

Less Air Conditioning
1. Disconnect battery ground cable.
2. On California models, remove emission module in front of blower motor.
3. On all models, disconnect electrical connector and cooling tube from blower motor.
4. Remove blower motor and wheel attaching screws.
5. Move cooling tube aside and carefully remove blower motor assembly from vehicle, Fig. 27.
6. Reverse procedure to install.

With Air Conditioning
1. Disconnect battery ground cable.
2. Disconnect air cooling tube and electrical connector from blower motor.
3. Remove blower motor attaching screws and the blower motor assembly.
4. Reverse procedure to install.
