Condenser HVAC: Service and Repair

Fig. 2 Spring lock coupling removal & installation:

1. Discharge refrigerant from system.
2. Disconnect compressor discharge line and liquid line from condenser and cap both lines, Fig. 2.
3. Partially drain radiator and disconnect upper hose from radiator.
4. Working under vehicle, remove two screws attaching two condenser lower mounting brackets to front of radiator support.

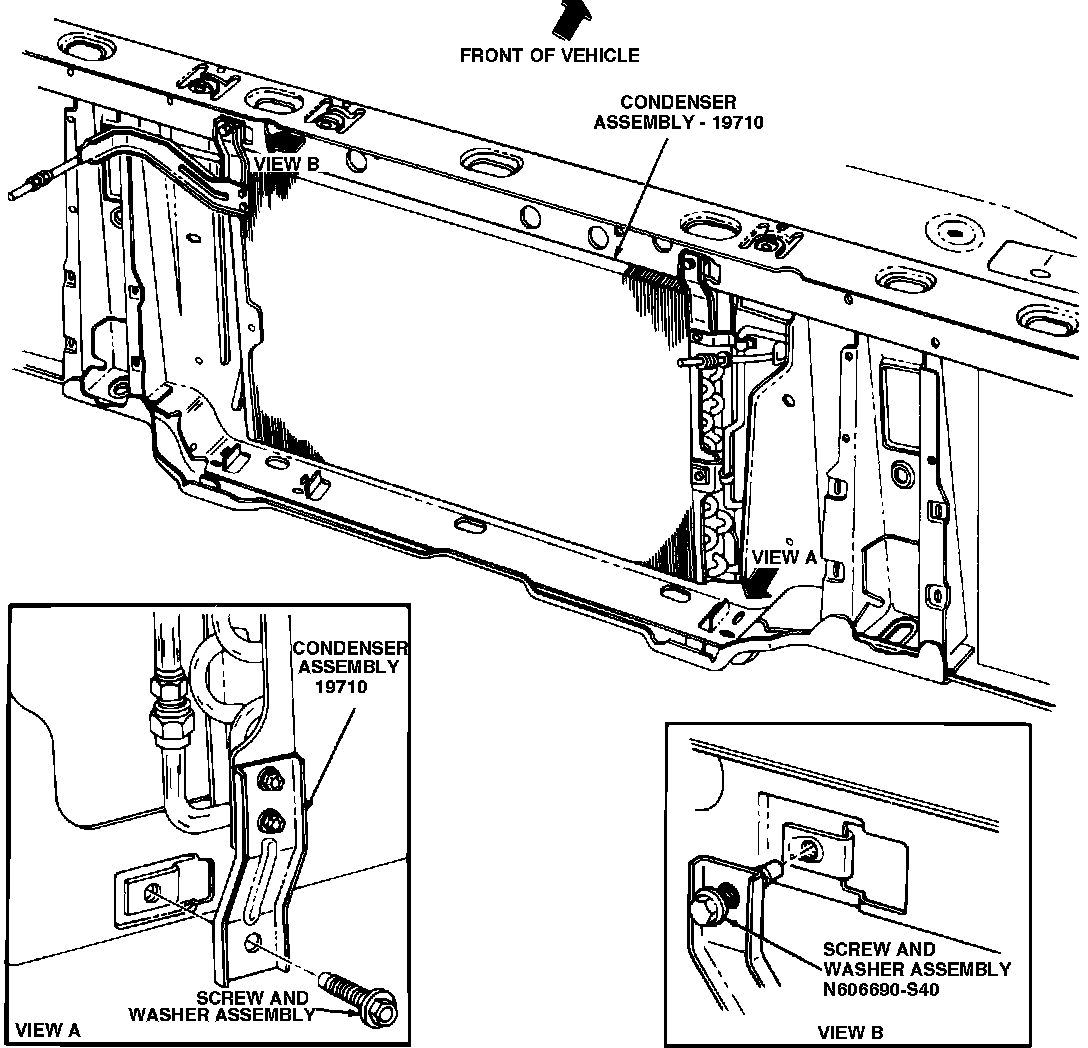

Fig. 3 Condenser removal:

5. Remove two radiator upper retaining brackets, Fig. 3.


6. Tilt top radiator rearward and remove two screws attaching two condenser upper mounting brackets to rear side of radiator support.
7. Lift condenser from vehicle.
8. Reverse procedure to install. Use new O-rings lubricated with refrigerant oil.
9. Leak test, evacuate and charge system. Check system for proper operation.
