Engine Controls

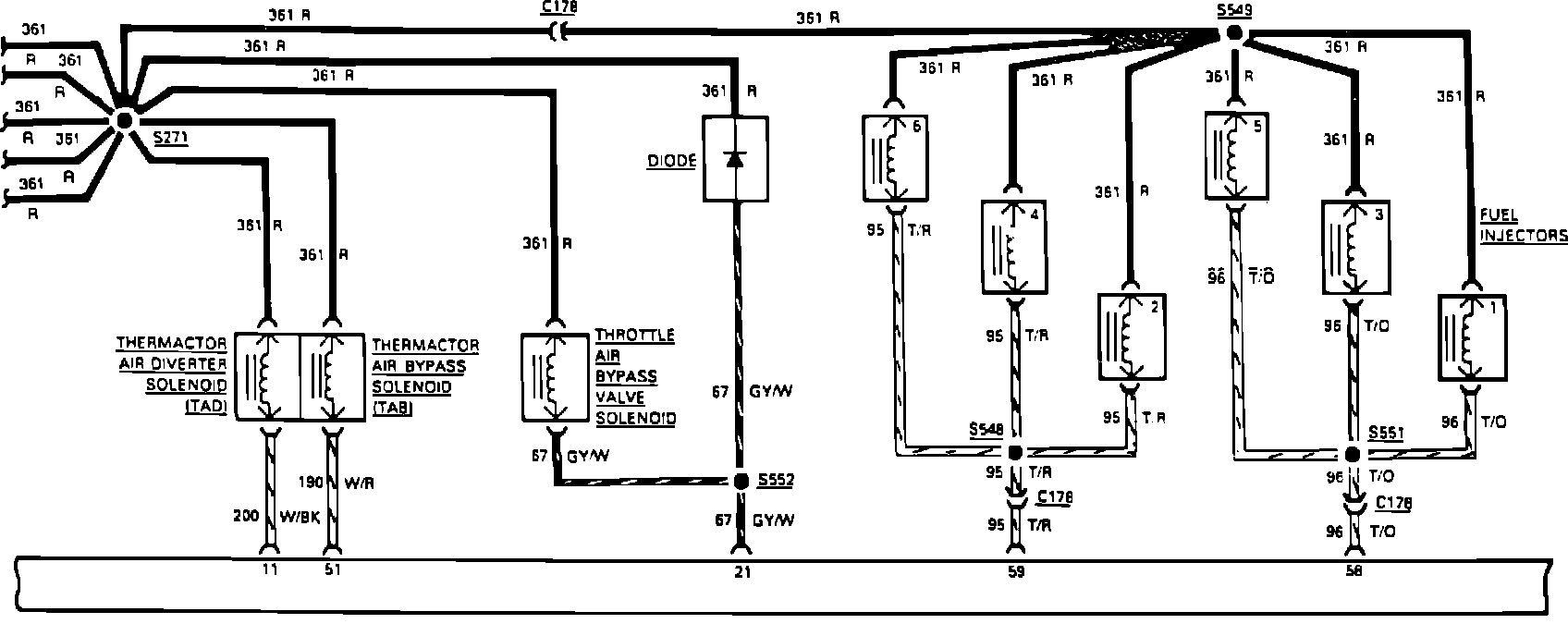

Fig. 16 Electronic Engine Control (EEC-IV) System Wiring Circuit (Part 1 of 4). 6-300/4.9L Engine:

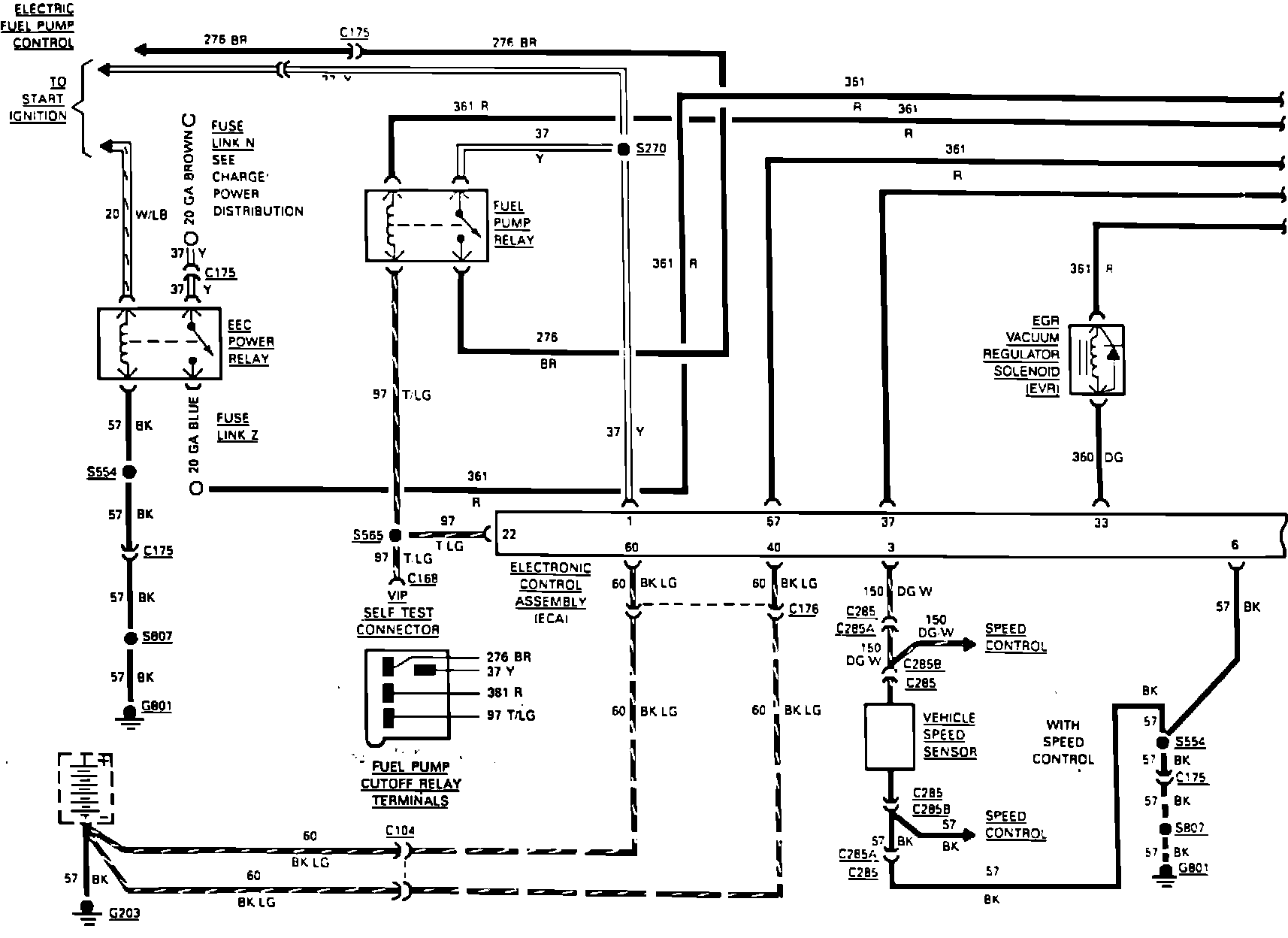

Fig. 16 Electronic Engine Control (EEC-IV) System Wiring Circuit (Part 2 of 4). 6-300/4.9L Engine:

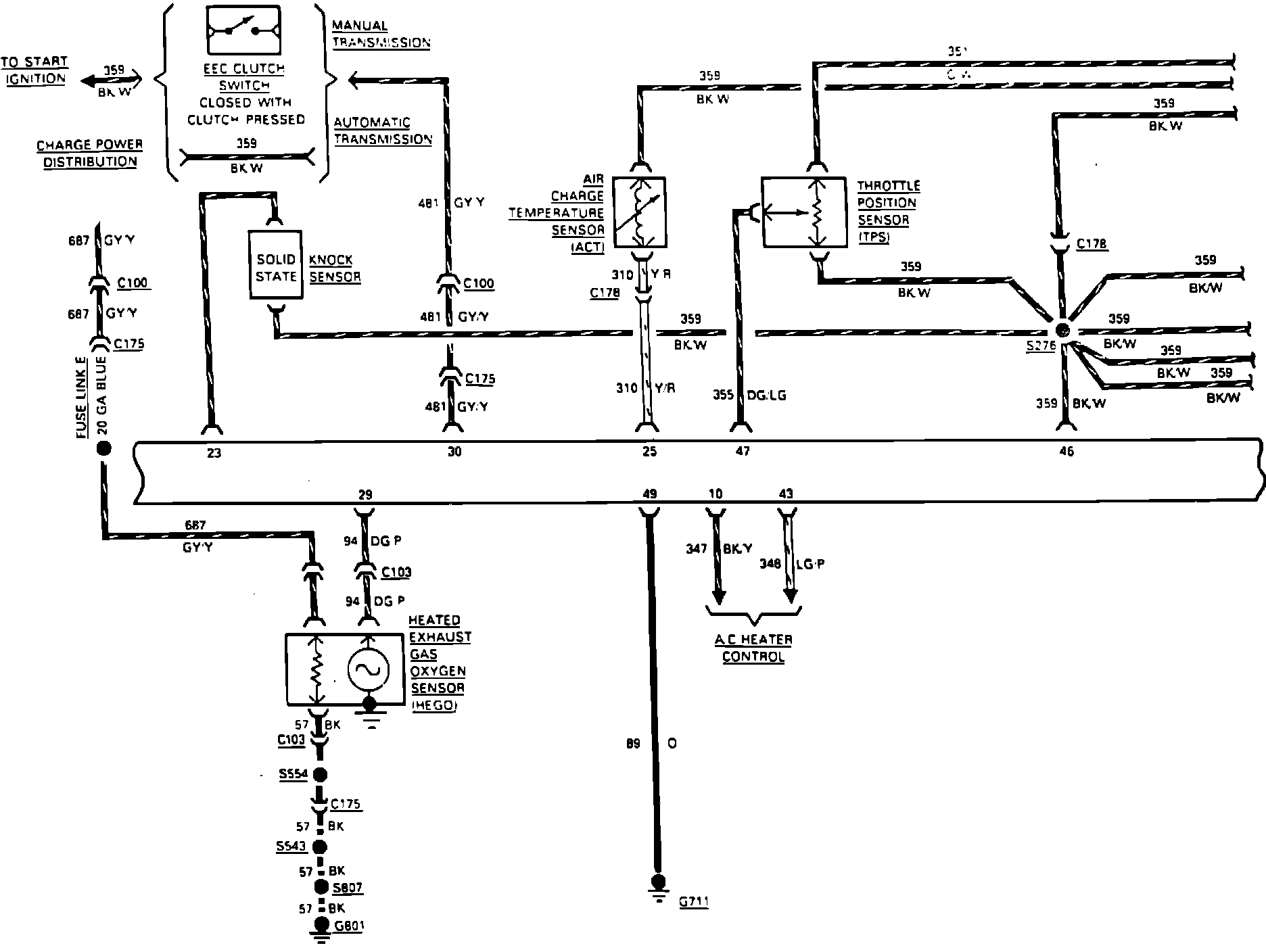

Fig. 16 Electronic Engine Control (EEC-IV) System Wiring Circuit (Part 3 of 4). 6-300/4.9L Engine:

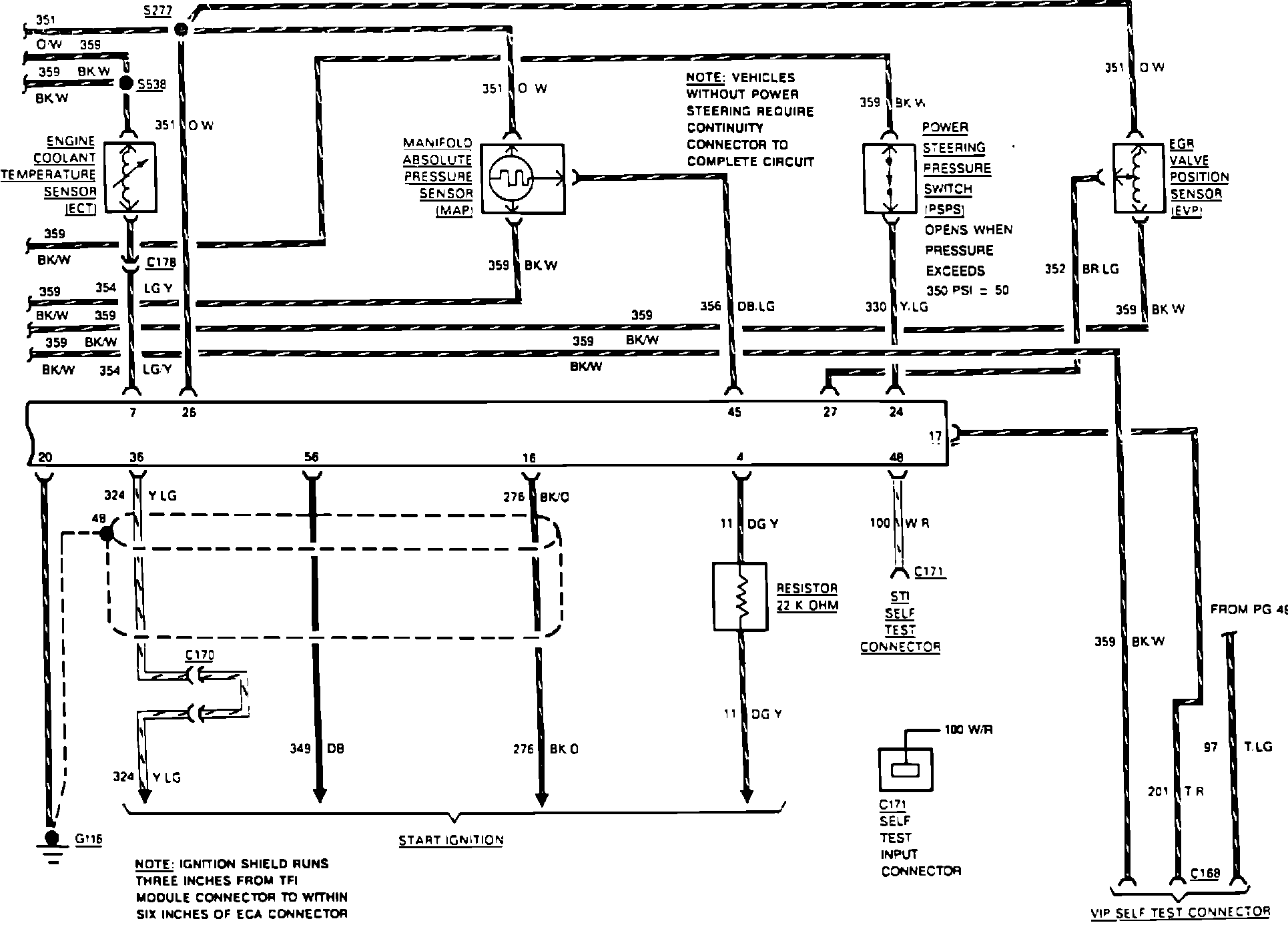

Fig. 16 Electronic Engine Control (EEC-IV) System Wiring Circuit (Part 4 of 4). 6-300/4.9L Engine:
